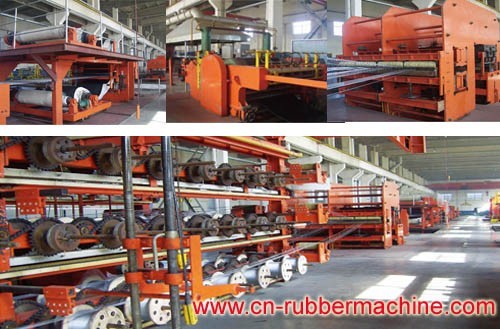

Steel Wire Conveyor Belt Production Line is suitable for vulcanizing general rubber conveyor belt, nylon conveyor belt, PVG conveyor belt, steel wire conveyor bet and a series of rubber belt.
Characteristic：
The main unit is frame type, the hot plates and piston all made by quality materials, though accurate processing, they are hard to abrade or corrupt, they are easy to maintain. Has the stable pressure, easy to adjust. This machine adopts PLC control mode, so can finish all actions automatic, and can realize and regulate the temperature of hot plates, increasing the controlling, reducing the labor intensity, enhancing the efficiency.
|
Parameter
|
XLB-1800X
12000*2
|
XLB-1800X
10000*2
|
XLB-1600X
10000*2
|
XLB-1600X
1000*1
|
XLB-1600X
8500*1
|
XLB-1400X
1000*1
|
XLB-1400X
8000-2
|
XLB-1400X
5700*2
|
XLB-1100X
5700*2
|
|
Hot-plate Size(mm)
|
1800*12000
|
1800*1000
|
1600*10000
|
1600*10000
|
1600*8500
|
1400*10000
|
1400*8000
|
1400*5700
|
1100*5700
|
|
Total Pressure(MN)
|
74.00
|
72.00
|
56.00
|
64.00
|
47.60
|
49.00
|
34.00
|
25.00
|
17.55
|
|
Hot-plate Unit Pressure(MN)
|
3.4
|
4.0
|
3.5
|
4.0
|
3.5
|
3.5
|
3.1
|
3.13
|
2.8
|
|
Plunger Diameter(mm)
|
500
|
500
|
450
|
500
|
500
|
450
|
400
|
360
|
500
|
|
Plunger NO
|
18
|
18
|
18
|
18
|
14
|
18
|
16
|
10
|
5
|
|
Max. Plunger Stroke(mm)
|
400
|
300
|
400
|
300
|
300
|
300
|
400
|
400
|
520
|
|
Gripping Strength(MN)
|
1.20
|
1.50
|
1.20
|
1.20
|
0.6
|
0.90
|
1.00
|
0.72
|
0.50
|
|
Tension Force(MN)
|
1.10
|
1.2
|
1.10
|
1.0
|
0.5
|
0.80
|
0.90
|
0.60
|
0.40
|
|
Steam Pressure(Mpa)
|
0.63
|
0.6-0.8
|
0.63
|
0.6-0.8
|
0.63
|
0.63
|
0.63
|
0.63
|
0.63
|
|
Cooling Water Pressure(Mpa)
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
|
Controlling Method
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
|
Dimension(L)
|
12000
|
10000
|
10000
|
10000
|
8500
|
10000
|
8000
|
5700
|
5700
|
|
Dimension(W)
|
2900
|
2740
|
2660
|
2560
|
2980
|
2400
|
2400
|
2350
|
1800
|
|
Dimension(H)
|
3930
|
3660
|
4120
|
3520
|
3325
|
3580
|
3880
|
4170
|
3305
|
