Conveyor Belt Vulcanizing Machine

Original Image

Products Visitors:1504

Product Name:Conveyor Belt Vulcanizing Machine
Model:XLB-1800x12000x2
Package:In bulk
Size:L12000/W2900/H3930

Products description: Conveyor Belt Vulcanizing Machine

Conveyor Belt Vulcanizing Machine is mainly used for vulcanizing giant conveyer belt such as nylon conveyer belt, common conveyer belt, anti-fire conveyer belt, wire rope conveyer belt etc.

Characteristics:

This machine is of high automation level and compact advanced structure.

The main machine is of frame structure and equipped with special purpose hydraulic unit.

Both the hot plates and piston plunger are all made of superior material, they are accurately processed and have high etch and wear resistance.

The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot plates can be measured and regulated automatically. This will improve the control level and provide with high efficiency of production and low intensity of labor.

Parameter	XLB-1800X 12000*2	XLB-1800X 10000*2	XLB-1600X 10000*2	XLB-1600X 1000*1	XLB-1600X 8500*1	XLB-1400X 1000*1	XLB-1400X 8000-2	XLB-1400X 5700*2	XLB-1100X 5700*2	XLB-1300X 4000*2
Hot-plate Size(mm)	1800*12000	1800*1000	1600*10000	1600*10000	1600*8500	1400*10000	1400*8000	1400*5700	1100*5700	1300*4000
Total Pressure(MN)	74.00	72.00	56.00	64.00	47.60	49.00	34.00	25.00	17.55	14.56
Hot-plate Unit Pressure(MN)	3.4	4.0	3.5	4.0	3.5	3.5	3.1	3.13	2.8	2.8
Plunger Diameter(mm)r	500	500	450	500	500	450	400	360	500	500
Plunger NO	18	18	18	18	14	18	16	10	5	4
Max. Plunger Stroke(mm)	400	300	400	300	300	300	400	400	520	250
Gripping Strength(MN)	1.20	1.50	1.20	1.20	0.6	0.90	1.00	0.72	0.50	0.5
Tension Force(MN)	1.10	1.2	1.10	1.0	0.5	0.80	0.90	0.60	0.40	0.4
Steam Pressure(Mpa)	0.63	0.6-0.8	0.63	0.6-0.8	0.63	0.63	0.63	0.63	0.63	0.63
Cooling Water Pressure(Mpa)	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Controlling Method	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC	PLC
Dimension(L)	12000	1000	10000	10000	8500	10000	8000	5700	5700	4000
Dimension(W)	2900	2740	2660	2560	2980	2400	2400	2350	1800	2050
Dimension(H)	3930	3660	4120	3520	3325	3580	3880	4170	3305	2795

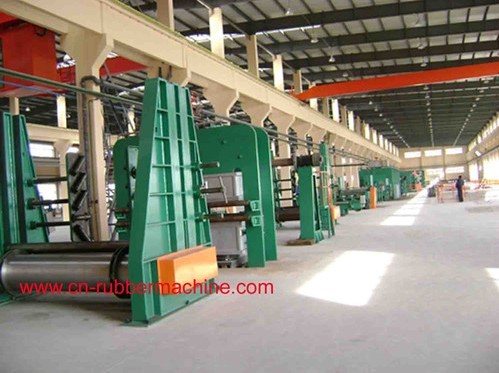

Product Images: Conveyor Belt Vulcanizing Machine
