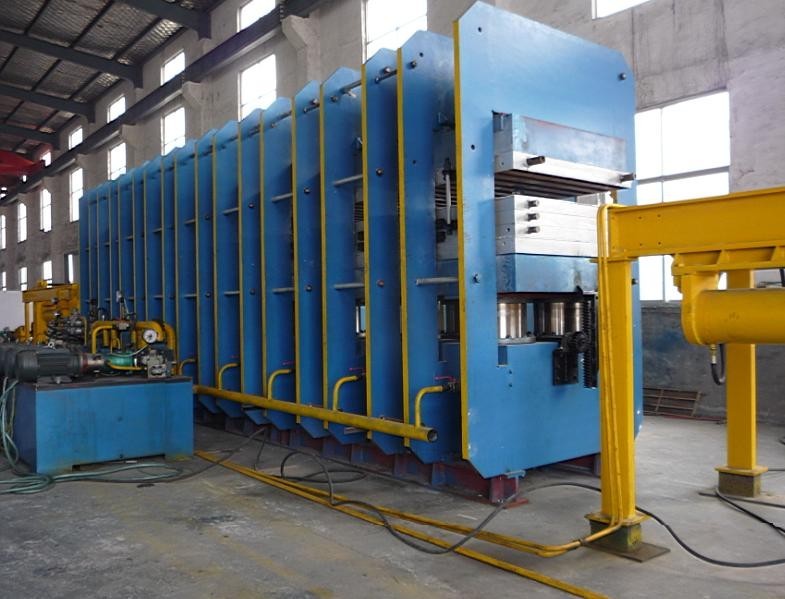

Conveyer Belt Vulcanizing Press is mainly used for vulcanizing giant conveyer belt such as nylon conveyer belt, common conveyer belt, anti-fire conveyer belt, wire rope conveyer belt etc.
Characteristics:
|
Parameter |
XLB-1800X 12000*2 |
XLB-1800X 10000*2 |
XLB-1600X 10000*2 |
XLB-1600X 1000*1 |
XLB-1600X 8500*1 |
XLB-1400X 1000*1 |
XLB-1400X 8000-2 |
XLB-1400X 5700*2 |
XLB-1100X 5700*2 |
XLB-1300X 4000*2 |
|
Hot-plate Size(mm) |
1800*12000 |
1800*1000 |
1600*10000 |
1600*10000 |
1600*8500 |
1400*10000 |
1400*8000 |
1400*5700 |
1100*5700 |
1300*4000 |
|
Total Pressure(MN) |
74.00 |
72.00 |
56.00 |
64.00 |
47.60 |
49.00 |
34.00 |
25.00 |
17.55 |
14.56 |
|
Hot-plate Unit Pressure(MN) |
3.4 |
4.0 |
3.5 |
4.0 |
3.5 |
3.5 |
3.1 |
3.13 |
2.8 |
2.8 |
|
Plunger Diameter(mm)r |
500 |
500 |
450 |
500 |
500 |
450 |
400 |
360 |
500 |
500 |
|
Plunger NO |
18 |
18 |
18 |
18 |
14 |
18 |
16 |
10 |
5 |
4 |
|
Max. Plunger Stroke(mm) |
400 |
300 |
400 |
300 |
300 |
300 |
400 |
400 |
520 |
250 |
|
Gripping Strength(MN) |
1.20 |
1.50 |
1.20 |
1.20 |
0.6 |
0.90 |
1.00 |
0.72 |
0.50 |
0.5 |
|
Tension Force(MN) |
1.10 |
1.2 |
1.10 |
1.0 |
0.5 |
0.80 |
0.90 |
0.60 |
0.40 |
0.4 |
|
Steam Pressure(Mpa) |
0.63 |
0.6-0.8 |
0.63 |
0.6-0.8 |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
|
Cooling Water Pressure(Mpa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Controlling Method |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
|
Dimension(L) |
12000 |
1000 |
10000 |
10000 |
8500 |
10000 |
8000 |
5700 |
5700 |
4000 |
|
Dimension(W) |
2900 |
2740 |
2660 |
2560 |
2980 |
2400 |
2400 |
2350 |
1800 |
2050 |
|
Dimension(H) |
3930 |
3660 |
4120 |
3520 |
3325 |
3580 |
3880 |
4170 |
3305 |
2795 |
