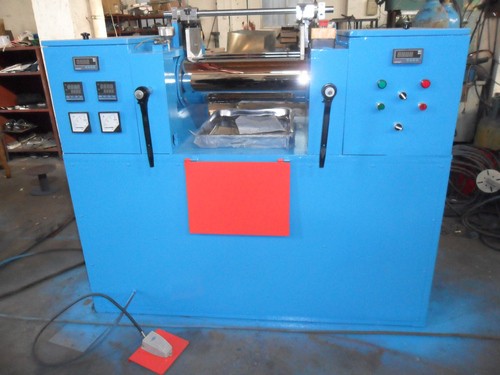

Lab Rubber Mixing Mill is Mixing machinery of the latest R & D labs.
The new type lab mixing mill is suitable for the mixing and kneading rubber, synthetic rubber, hot melt adhesive, EVA, chemical medicine, ensure the dispersion of raw material and used for small test or small production.
Description
1. New type laboratory rubber mixing mill can use uni motor drive, high transmission efficiency. And also can use double motor drive which has continuously variable transmission.
2. Machines can be equipped with infrared, in order to ensure the safety of the operator.
3. We can produce electric heating, steam heating and water cooler rubber mixing mill.
4. The workers can operation the machine in front and back. It is equipped with emergency stop devices below the machine which can stop at any time to meet an emergency situation, thus ensure the safety of personnel.
5. Can be equipped with manual and automatic hanging plastic device, ease of tapping and increase staff safety factor.
6. Protective cover can be equipped upward the roller, to ensure the safety of operating personnel.
Item
|
X(S)K-90
|
X(S)K-100
|
X(S)K-160
|
Roll Size
|
∮90X215
|
∮100X230
|
∮160X320
|
Roll Hardness
|
HRC50-55'
|
HRC50-55'
|
HRC50-55'
|
Roll Friction Ratio
|
1︰1.22
|
1︰1.22
|
1︰1.35
|
Front Roll Speed
|
19.6r/min
|
19.6r/min
|
17.85r/min
|
Rollers Spacing
|
0-3mm
|
0-3mm
|
0-4mm
|
Capacity Per Patch
|
0.5-1Kg
|
1-5Kg
|
1-15Kg
|
Motor Power
|
3
|
1.5/3
|
5.5
|
Overall Dimension
(L x W x L)
|
1200mm×750mm×1500mm
|
1400mm×650mm×1500mm
|
1500mm×750mm×1500mm
|
Remark
|
1.Electric heating can adjust temperature between room temperature to 220℃.
2. Bearing type drive.
3. Sealed by high temperature resistance seals, eliminating oil leakage.
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
