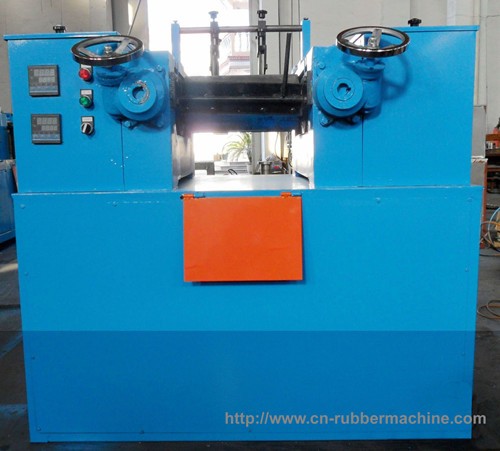

Lab Mixing Mill Use Raw Materials to mixed quality detection.
Application:
|
Item
|
X(S)K-90
|
X(S)K-100
|
X(S)K-160
|
|
Roll Size
|
∮90X215
|
∮100X230
|
∮160X320
|
|
Roll Hardness
|
HRC50-55＇
|
HRC50-55＇
|
HRC50-55＇
|
|
Roll Friction Ratio
|
1︰1.22
|
1︰1.22
|
1︰1.35
|
|
Front Roll Speed
|
19.6r/min
|
19.6r/min
|
17.85r/min
|
|
Rollers Spacing
|
0-3mm
|
0-3mm
|
0-4mm
|
|
Capacity Per Patch
|
0.5-1 Kg
|
1-5 Kg
|
1-15 Kg
|
|
Motor Power
|
3
|
1.5/3
|
5.5
|
|
Overall Dimension
(LxWxH)
|
1200mm×750mm×1500mm
|
1400mm×650mm×1500mm
|
1500mm×750mm×1500mm
|
|
Remark
|
1.Electric heating can adjust temperature between room temperature to 220℃.
2. Bearing type drive.
3. Sealed by high temperature resistance seals, eliminating oil leakage.
|
||
