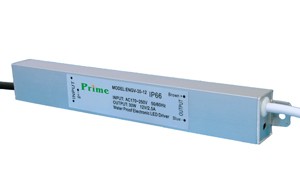

PS-WPS30-12
|
Input Voltage range |
170~260VAC/ 240~360VDC |
|
Rated DC voltage |
12V |
|
OUTPUT Voltage tolerance |
About 12V |
|
Protections |
Short circuit/ Overload / Over voltage / Over Temperature |
|
Test |
100% full load test |
|
Rated current |
2.5A |
|
Current range |
0~2.5A |
|
Rated Power |
30W |
|
Ripple & Noise |
<500mVp-p |
|
Power Factor |
>0.6 |
|
Load regulation |
Tolerance 2% |
|
Frequency range |
47~65Hz |
|
INPUT Efficiency (Typ.) |
>85% |
|
Leakage current |
0.5mA/240V AC |
|
Over load |
6~7A |
|
Working TEMP. |
-25ºC~50ºC |
|
Storage TEMP. |
-40ºC~80ºC |
|
Over TEMP. |
over-temperature protection 85ºC |
|
Working Humidity |
IP66 |
|
Vibration |
10~500Hz,-2G 10min/1cycle |
|
TEMP. coefficient |
Tolerance 0.03%/ºC(0~50ºC) |
|
MTBF |
20KHours MIL-HDBK-217F (25ºC) |
|
Dimension |
226 x 30 x 21 mm |
|
Weight |
260g |
|
Expected Life |
2-year warranty |
|
Certifications |
CE and RoHS |
