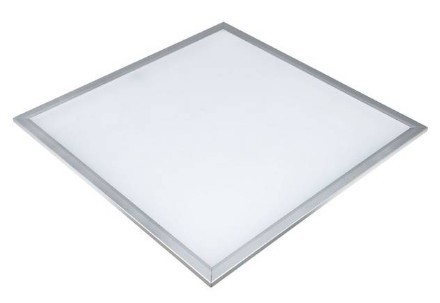

36/42/48/54W LED panel light comes, as replacement of T8 fixture, 600*600mm, with Taiwan LumenMax 3014 SMD (CRI 75) or Samsung 5630SMD (CRI80), warm white and white.
Features:
1. Save 60-70% on the electricity bill and maintenance cost;
2. Long life to 40,000hours;
3. No delay to light on;
4. No UV or IR radiation, NO mercury;
5. Aluminum alloy housing and Optical PMMA cover;
6. Three years Guaranteed
Comparison with Grid T8 Fixture
Items |
LED Panel |
T8 Grid Fixture |
Size |
596x596x11mm |
600x600x110mm |
Lighting Source |
3014 LED |
T8 |
Qty |
352pcs |
3 x 20W T9 Tube |
LUX@1.5M |
467 |
355 |
LUX@2.0M |
283 |
212 |
LUX@2.5M |
191 |
163 |
LUX@3.0M |
139 |
123 |
LUX@3.5M |
107 |
99 |
Power |
37.9W |
88W |
incl. Power supply |
incl. 28W Ballast |
|
Save |
48W |
/ |
MTBF |
30,000 hours |
3,000 hours |
Lumens Decrease |
<1%@1000Hrs |
<10%@1000Hrs |
70% Brightness |
29,000 Hrs |
10,000Hrs |
50%Brightness |
40,000Hrs |
/ |

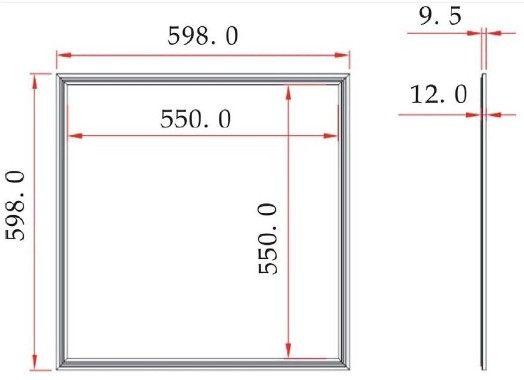

Specification of 60*60CM LED Panel light
Part No. |
PPL-0606-36W |
PPL-0606-42W |
PPL-0606-48W |
PPL-0606-54W |
Size |
600*600*12mm |
600*600*12mm |
600*600*12mm |
600*600*12mm |
Power |
36W |
42W |
48W |
54W |
Lumens |
2500-2900LM |
3000-3200LM |
3300-3600LM |
3800-4100LM |
Color |
White / Warm white |
White / Warm white |
White / Warm white |
White / Warm white |
LumenMax |
352pcs 3014SMD |
418pcs 3014SMD |
462pcs 3014SMD |
528pcs 3014SMD |
Samsung |
88pcs 5630SMD |
88pcs 5630SMD |
100pcs 5630SMD |
176pcs 5630SMD |
CRI 〉 |
Ra75 (3014) Ra80 (5630) |
Ra75 (3014) Ra80 (5630) |
Ra75 (3014) Ra80 (5630) |
Ra75 (3014) Ra80 (5630) |
Input |
110-270V,50~60Hz |
110-270V,50~60Hz |
110-270V,50~60Hz |
110-270V,50~60Hz |
Beam Angle |
120 |
120 |
120 |
120 |
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
Operating Temperature |
-20~65 degrees Celsius |
-20~65 degrees Celsius |
-20~65 degrees Celsius |
-20~65 degrees Celsius |
Indoor Use, IP42 |
Indoor Use, IP42 |
Indoor Use, IP42 |
Indoor Use, IP42 |
