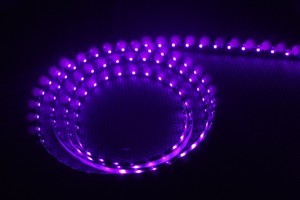

Purple LED flex strip comes with 3528SMD, 600-610nm, 60/120LEDs/M, 12/24V input, as well as slim and flexible PCB, which is terrific for decoration and DIY use.
They can be used in a wide variety of applications, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.
Prime LED Flexible Ribbon Strip is available in four varieties:
A) Regular Flex strip, 3M tape on backing, IP20;
B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone jacket and Gel inside, IP67.
Technical Data:
Part NO. (IP20) |
PFS-3528P60A-12 |
PFS-3528P120A-12 |
Part NO. (IP66) |
PFS-3528P60B-12 |
PFS-3528P120B-12 |
Part NO. (IP66) |
PFS-3528P60C-12 |
PFS-3528P120C-12 |
Part NO. (IP67) |
PFS-3528P60D-12 |
PFS-3528P120D-12 |
Color: |
Purple (600-610nm) |
Purple (600-610nm) |
Voltage: |
12V or 24V |
12V or 24V |
Size: |
10mm wide, 5 meters a reel |
10mm wide, 5 meters a reel |
LED Type: |
3528SMD |
3528SMD |
Quantity: |
60 LEDs per meter |
120 LEDs per meter |
Power: |
4.8W per meter |
9.6W per meter |
PCB in: |
Copper, white or black |
Copper, white or black |
Beam Angle: |
120 degrees |
120 degrees |
Expected Life |
50,000hours |
50,000hours |
Warranty: |
Two Years |
Two Years |
