Product Code |
PC-4600 |
|
Input Voltage range |
DC5V,12V,18V,24V optional (Specify the required voltage on order form ) |
|
Output |
3 channel |
|
working temperature |
-20~60ºC |
|
power output |
5V:<60W, 12V:<144W, 24V:<288W |
|
Connection mode: |
Common anode |
|
Output current |
<4A(each channel) |
|
Static power consumption |
<1W |
|
Dimension |
L105xW65xH25 mm |
|
Carton Size |
L122xW85xH42 mm |
|
Net Weight |
115g |
|
Certifications |
CE and RoHS |

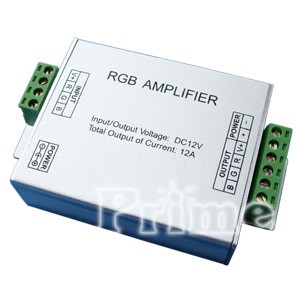

RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier,the connecting number of led will be more than twice,intheory,numerous RGB amplifiers can be connected.
