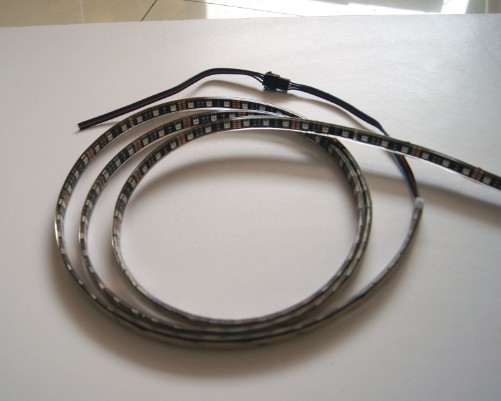

60LEDs/M RGB LED flex strip comes with 60LEDs, 14.4W per meter, 12/24V input, Waterproof type with silicone jacket and Gel inside, IP68, fully waterproof.
They can be used in a wide variety of applications, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.
Features:
> Dimmable brightness and changeable color as you like;
> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;

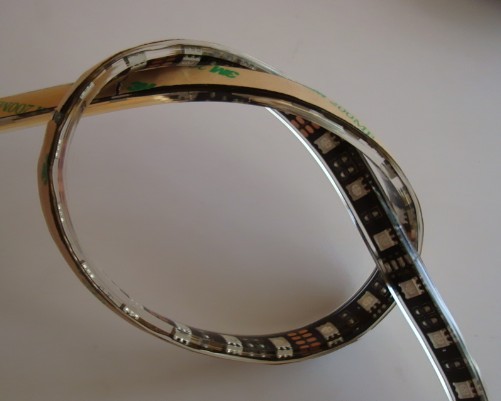

> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.
Technical Data:
Part NO. (IP68) |
PFS-5060RGB60D-12 |
Color: |
RGB |
Voltage: |
12V or 24V |
Size: |
10mm wide, 5 meters a reel |
LED Type: |
5060SMD |
Quantity: |
60 LEDs per meter |
Power: |
14.4W per meter |
PCB in: |
Copper, white or black |
Beam Angle: |
120 degrees |
Expected Life |
50,000hours |
Warranty: |
Two Years |
Connection Diagram:
