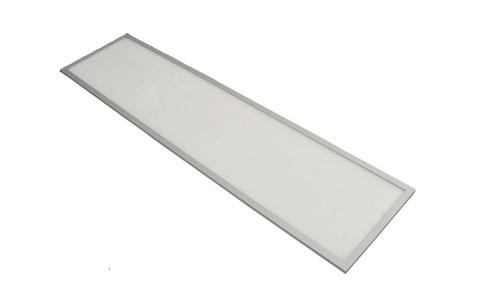

36/42/48/54W LED panel light comes, as replacement of T8 fixture, 300*1200mm, with Taiwan LumenMax 3014 SMD (CRI 75) or Samsung 5630SMD (CRI80), warm white and white.
Features:
1. Save 55%-70% on the electricity bill and maintenance cost;
2. Long life to 40,000hours;
3. No delay to light on;
4. No UV or IR radiation, NO mercury;
5. 6063 Aluminum alloy housing and Optical PMMA cover;
6. Two years Guaranteed
Specification
> Power consumption of LEDs: 36W
> Total Power with External Driver: 40W
> Color: 2800~7000K (White in 5500K)
> Output: 2200-2600Lm (2400LM with 5500K)
> LED Qty: 352 SMD LEDs (3014)/ 88 SMD LEDs (5630)
> Dimension: 300x1200x12mm
> Beam angle :> 120degree
> CRI: >75 (3014smd), >80 (5630smd)
> Input: AC 50v~270v, 50~60Hz
> Operating temperature: -20~65 degrees Celsius
> IP42
Electrical Characteristics at TA =25°C, If = 20 mA
Parameter |
Unit |
Min. |
Typical |
Max. |
Power Consumption |
W |
41.5 |
43.8 |
45.5 |
Power Factor |
* |
0.93 |
0.94 |
0.95 |
Efficiency |
* |
|
|
|
Input Voltage |
V(AC) |
79 |
110/220 |
275 |
Output Current |
mA |
1.66 |
1..68 |
1.70 |
Optical Characteristics at TA =25°C, If = 20 mA
Parameter |
Unit |
Min. |
Typical |
Max. |
Luminous Output |
lm |
2300 |
2400 |
2600 |
Color Temperature |
K |
5100 |
5500 |
5900 |
1 Meter |
Lux |
950 |
1001 |
1050 |
1.5 Meter |
Lux |
443 |
467 |
491 |
2.0 Meter |
Lux |
263 |
283 |
303 |
2.5 Meter |
Lux |
173 |
191 |
204 |
3.0 Meter |
Lux |
128 |
139 |
150 |
3.5 Meter |
Lux |
101 |
107 |
113 |
Color Rendering Index |
* |
74 |
75 |
76 |
Specification sheet:
Part No. |
PPL-0312-36W |
PPL-0312-42W |
PPL-0312-48W |
PPL-0312-54W |
Size |
300*1200mm |
300*1200mm |
300*1200mm |
300*1200mm |
Power |
36W |
42W |
48W |
54W |
Lumens Output |
2500-2900LM |
3000-3200LM |
3300-3600LM |
3800-4100LM |
Color |
White / Warm white |
White / Warm white |
White / Warm white |
White / Warm white |
LED |
352pcs 3014SMD 88pcs 5630SMD |
418pcs 3014SMD 88pcs 5630SMD |
462pcs 3014SMD 100pcs 5630SMD |
528pcs 3014SMD 176pcs 5630SMD |
Input Voltage |
110-270V,50~60Hz |
110-270V,50~60Hz |
110-270V,50~60Hz |
110-270V,50~60Hz |
CRI |
Ra75 (3014) Ra80 (5630) |
Ra75 (3014) Ra80 (5630) |
Ra75 (3014) Ra80 (5630) |
Ra75 (3014) Ra80 (5630) |
Beam Angle |
120 |
120 |
120 |
120 |
Lifespan |
50,000hours |
50,000hours |
50,000hours |
50,000hours |
Operating Temperature |
-20~65 degrees Celsius |
-20~65 degrees Celsius |
-20~65 degrees Celsius |
-20~65 degrees Celsius |
|
Indoor Use, IP42 |
Indoor Use, IP42 |
Indoor Use, IP42 |
Indoor Use, IP42 |
