carton sealing machine ,packing machine ,taping machine
Our carton sealing and taping machines are available in the market at leading prices.
Our Catron Sealing and Taping Machines are high performing in their nature.

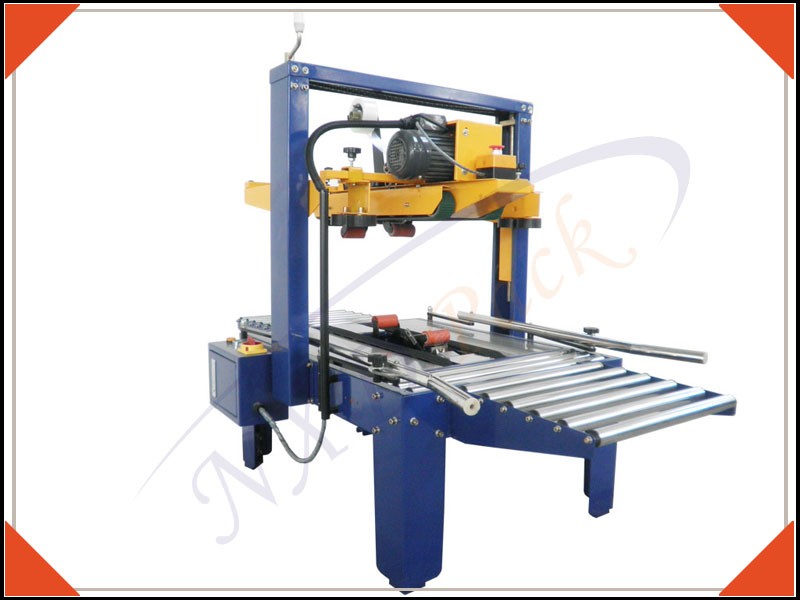

Sealing machine series,Automatic Carton Sealing Machine
automatic carton sealing machine is mainly used in sealing and packing cartons,
which can be used either independently or as a necessary part of a production line.
Model No : BSM-600
Application :
Applicable for household appliances, foodstuffs ,general merchandise, medicine ,
tobacco leaf redrying , pharmacy, texile, chemical engineering and so on.
Power supplier and power |
AC 110/220V ,50/60HZ or, 400W |
Conveyor speed |
20.4m/min |
Sealing speed: |
700~1200(ctns/hr) |
Sealing area |
Up and down |
Carton size |
(L)150-∞*(W)200-500mm*(H)120-480mm |
Tape width |
48-60mm(kraft or BOPP tape) |
Height of workbench |
550-700 mm |
Machine size |
L (974) X W (892) X H(1700)mm |
Shipping size |
L(1120) X W(1150) X H(1600)mm |
net weight /Gross weight/ |
100kgs/ 130 kgs |
Specifications
@1.Top and Side belts driven; top and bottom sealing
@ 2.Compact and durable design ,easy to operate
@ 3.High quality components Imported parts, electrical and pneumatic components
@ 4.Manually adjust the height and the width for sealing different sizes of cartons
@ 5.Cutter Safety system to prevent hands form stabbed by the cutter
