packing machine ,packing machinery ,strapping machine ,automatic strapping machine

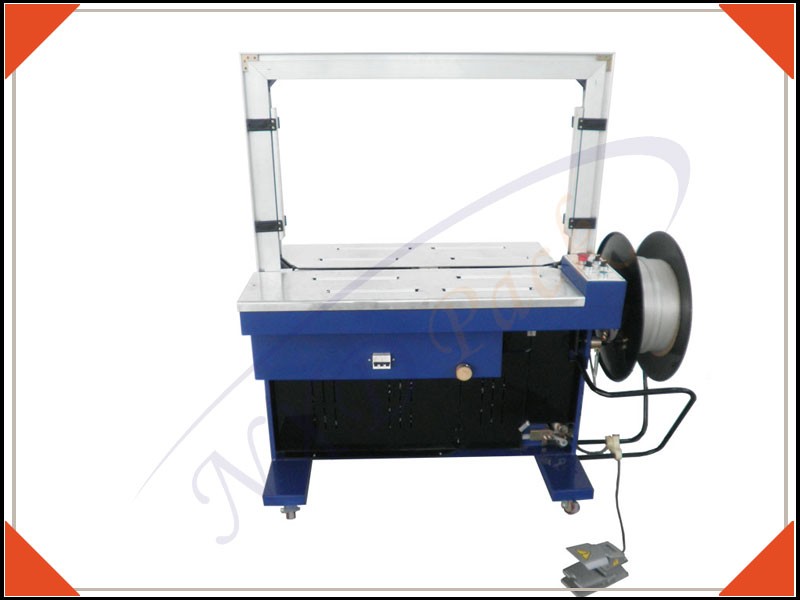

Model No : PKM-800
Application:
Mainly applied to cartons,boxes, books and other hardware and software package and the square ,tubular ,ring component packing ,widely used in home appliance , medicine, hardware, chemical engineering, clothing ,food, foreign trade, department stores ,printing ,
Telecommunications, textiles and other industries for packing .
Model No |
PKM-800 |
Dimensions |
1412mm W X 600mm L X 1540 mm H |
Strapping tension |
Adjustable from 0 to 400 N |
Strapping speed |
1.5-2.0 sec/cycle |
Strap width |
5~12(mm) |
Strap Thickness: |
0.35-0.75 mm. |
Arch size |
800×600(mm) |
Power supply |
380/50~60(Hz) 750 W/5A |
power consumption |
0.5/0.62 (KVA) |
Table height |
830MM |
Joint pattem |
Heating joint, Heat Sealing, Instantaneous Heating. |
Raw materials |
Polypropylene straps. |
Machine weight |
220(kg) |
Shipping weight |
250(kg) |
This machine is the most general-purpose type, featuring a high strapping speed and a low failure rate features
1、Easy maintenance: no greasing, mechanism is stable and durable, easy operation, Easy to move
2、Tension Adjustment: Can be adjustable at well, Max. Tension is over 90kgs
3、Add on a safety device, built for 24 hrs continuous operation
4、Easier changeover of straps suitable for 5-12mm strap width,
5、both manual and automatic continuous bundling, spherical switch, foot switch.
6、High efficiency economical reduce the packing cost to create the profit ·
