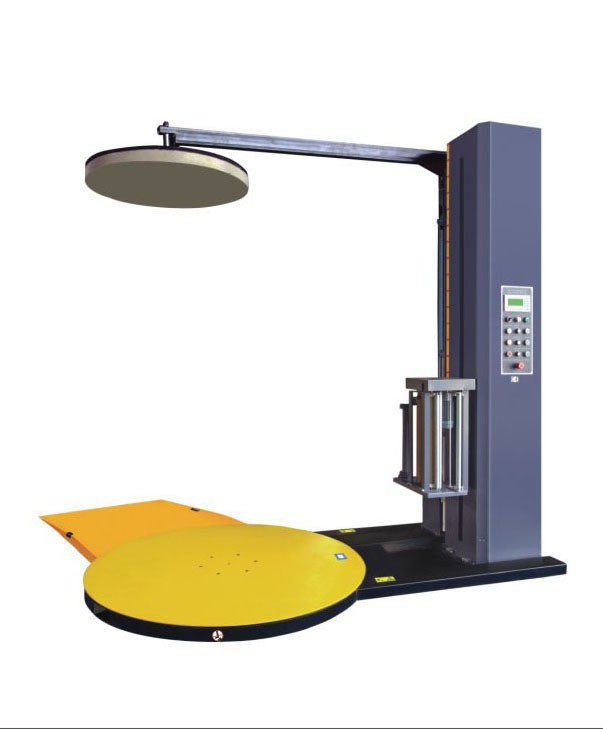

packing machine ,wrapping machine
A. Power: 1PhaseAC200-240V50HZ
B. Turntable motor Power 0.75KW; 1-14round/minute;
C. Lift motor: 0.37KW;.
D. Pre-stretch motor: 0.2KW;Stretch rate 100%-250%.
E. Turntable Diameter: 1500MM (can be made as per your requirements)
F. Max turntable loading weight: 2000KG (can be made as per your requirements)
G. Max height of package: 2100MM(can be made as per your requirements)
H. Pneumatic press unit device: (Optional)
I. Turntable height: 82CM
J. PLC control (the cycle number and trips can be set ,The film frame setting is odd, the membrane frame residence in the upper 20seconds will automatically to a specified bit ,The film frame setting even when the film frame, the top can be set up
K. 3 PCS Schinider transducer
L . Pneumatic capping device ,Automatically sensing the height of the goods, to prevent the goods loose capping.
2. General function
A. PLC control system
B. Digital screen, 4 wrapping programs: up, up with cap, up+down, up+down with cap
C. Pre-stretch film carriage
D. Easy-open film carriage
E. Automatic photocell reading of pallet height
F. Reinforce function
G Slow start and stop
H. Automatic stop on turntable position “homing”
I. Use in automatic and manual mode
J. Turntable rotation speed regulation
K. Film carriage up/down speed regulation
L. film extraction speed regulation (motorized per stretch)
M. Presser management (optional)
