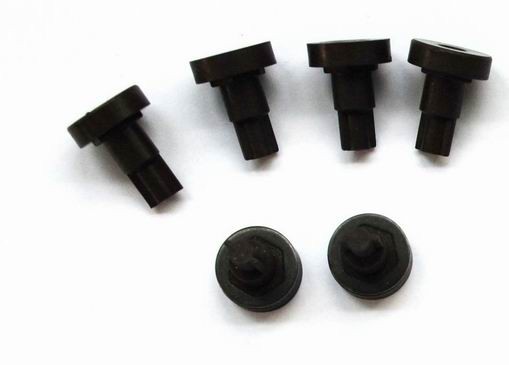

The injection molded magnet has a high mechanical strength and may be molded together with other matching parts.
1. Physical properties: High accuracy in size, high mechanical strength.
2. Manufacturing method:Single-time molding and multi-poles orientation.
3. Surface treatments: Effective surface treatment to prevent corrosion like epoxy resin parylene-coating. No bubble, no crack.
4. Magnetic properties: High temperature stability.The energy product is 3 times as large as ferrite. During the large-scale production, the magnetic properties are stable and the conformity is good.
5. Applications: mini-motors, auto motors, air-conditioner motors, automatic controlling devices, sensors, drivers, telecom and instrument industry.
Magnetic Properties of injection molding bonded NdFeB Magnets:
Grade |
BNI-2 |
BNI-2 |
BNI-6 |
BNI-8 |
BNI-6H |
|
Br (T) |
0.20-0.40 |
0.40-0.49 |
0.49-0.57 |
0.57-0.63 |
0.48-0.56 |
|
HcB |
KA/M |
120-240 |
247-310 |
312-382 |
382-430 |
334-398 |
KOe |
1.5-3.0 |
3.1-3.9 |
3.9-4.8 |
4.8-5.4 |
4.2-5.0 |
|
HcJ |
KJ/m3 |
560-720 |
573-732 |
637-796 |
676-835 |
1035-1353 |
KOe |
7.0-9.0 |
7.2-9.2 |
8.0-10.0 |
8.5-10.5 |
13.0-17.0 |
|
(BH)Max |
KJ/m3 |
6.4-24 |
28-36 |
42-56 |
59-67 |
40-52 |
MGOe |
0.8-3.0 |
3.5-4.5 |
5.2-7.0 |
7.4-8.4 |
5.0-6.5 |
|
Density (g/cm3) |
3.5-4.0 |
4.0-5.0 |
5.0-5.5 |
5.0-5.5 |
5.0-5.5 |
|
a Br (%/℃) |
-0.15 |
-0.1 |
-0.1 |
-0.1 |
-0.15 |
