Straflo Fan Blade Balancing Machine

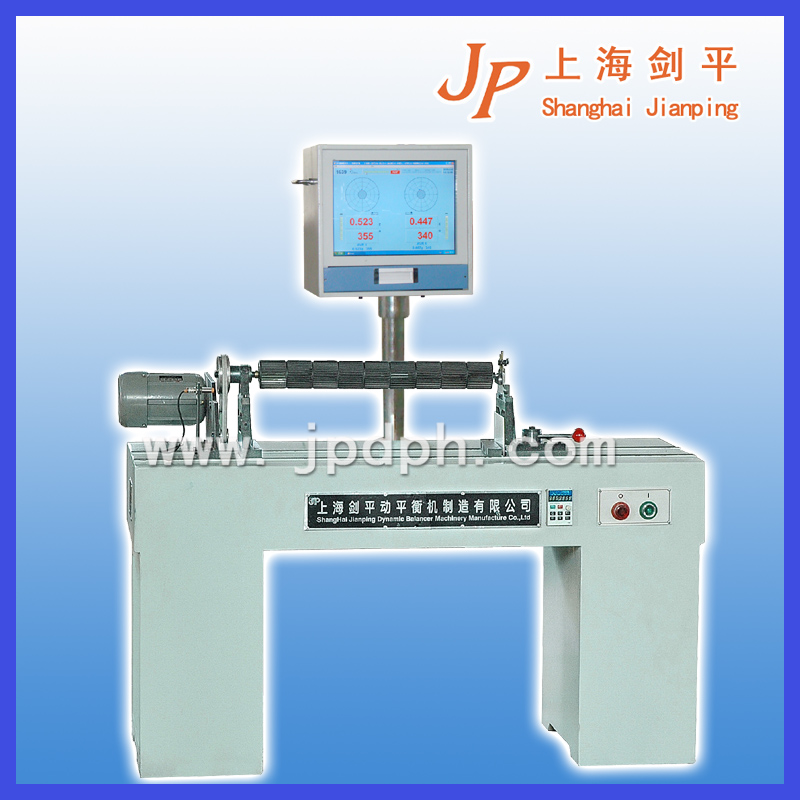

PHQ-T16 Balancing Machine for Straflo Fans
This balancing machine is mainly applied to balance products like straflo bellows of air- conditioner, with advantages of high accuracy, high measuring speed and low fault rate etc.
|
Specifications |
Parameters |
|
Max Mass Scope of Workpiece (kg) |
16 |
|
Max Diameter of Workpiece (mm) |
150 |
|
The distance between two bearing pedestals(mm) Length of Workpiece (mm) |
Min60 900 |
|
Rotation Speed of the Main Axis (r/min) |
740/1100 |
|
Journal Diameter Scope of Support Bearings (mm) |
5-12 |
|
Motor Power (kw) |
0.25 |
|
Min Achievable Residue Unbalance Amount (emar) |
5g.mm/kg |
