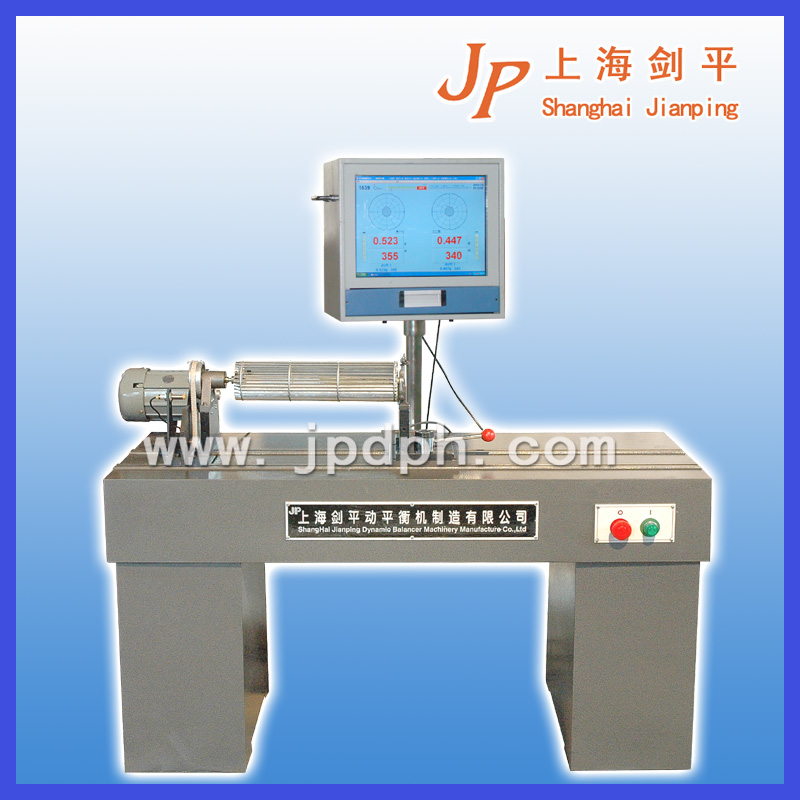

Straflo Fan Blade Balancing Machine (PHQ-T5)

Original Image

Products Visitors:374

Product Name:Straflo Fan Blade Balancing Machine (PHQ-T5)

Products description: Straflo Fan Blade Balancing Machine (PHQ-T5)

Straflo Fan Blade Balancing Machine :

This balancing machine is mainly applied to balance products like straflo bellows of air- conditioner, with advantages of high accuracy, high measuring speed and low fault rate etc.

Specifications	Parameters
Max Mass Scope of Workpiece (kg)	5
Max Diameter of Workpiece (mm)	150
The distance between two bearing pedestals (mm) Length of Workpiece(mm)	Min60 900
Rotation Speed of the Main Axis (r/min)	740/1100
Journal Diameter Scope of Support Bearings (mm)	5-12
Motor Power (kw)	0.25
Min Achievable Residue Unbalance Amount (emar)	5g. mm/kg

Product Images: Straflo Fan Blade Balancing Machine (PHQ-T5)
