Introduction:

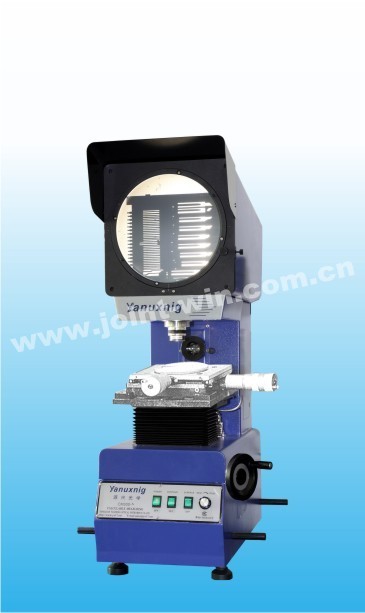

Profile projector model CM
The Specifications:
|
Model Items |
CM |
|||||
|
Work-stage |
The size of metal work-stage(mm) |
200*160 |
||||
|
The size of glass work-stage(mm) |
Φ90 |
|||||
|
X.Y axis travel (mm) |
50*50 |
|||||
|
Z axis travel (mm) |
85 |
|||||
|
Mini displaying value(mm) |
0.01 (Mechanical reading) |
|||||
|
Projection screen |
Size (mm) |
Ø308, effective range≥Ø |
||||
|
Rotary range |
0 ~ 3600 |
|||||
|
Angle resolution |
2' (Mechanical display value) |
|||||
|
Lifting system |
45 0 helical gear guide lifting system |
|||||
|
Objectives |
Magnification |
10X(Standard) |
20X(Option) |
50X(Option) |
100X(Option) |
|
|
Object view |
Ø |
Ø |
Ø |
Ø |
||
|
Working distance |
|
|
|
|
||
|
Instrument illumination |
Transmission and reflection light source: 24V/150W-halogen lamp |
|||||
|
Power |
AC110V/220V; 50Hz/60Hz |
|||||
|
Accuracy |
3 + L/50 (um) |
|||||
|
Dimension (Lx W x H) |
570*770* |
|||||
|
Weight |
110Kgs |
|||||
|
Optional Accessories |
20x, 50x, 100x objective and mirror, 2D Measuring software. |
|||||
