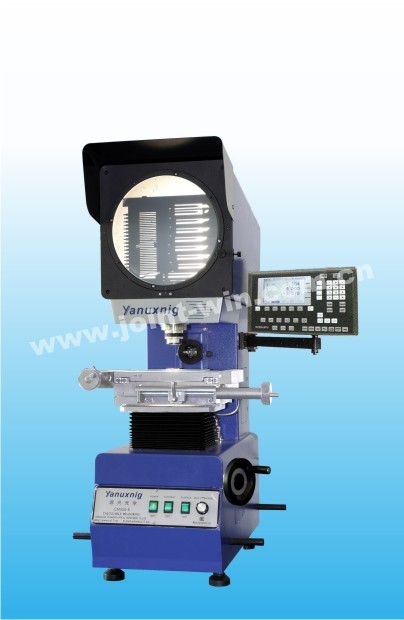

Profile projector CM
The Specifications:
|
Model Items |
CM |
CM-300D |
|||||
|
Work-stage |
The size of glass work-stage(mm) |
306*206 |
356*206 |
||||
|
The size of glass work-stage(mm) |
196*125 |
262*154 |
|||||
|
X.Y axis travel (mm) |
150*100 |
200*100 |
|||||
|
Z axis travel (mm) |
85 |
||||||
|
Mini displaying value(mm) |
0.001 (digital display) |
||||||
|
Projection screen |
Size (mm) |
Ø308, effective range≥Ø |
|||||
|
Rotary range |
0 ~ 3600 |
||||||
|
Angle resolution |
1' or 0.01º |
||||||
|
Lifting system |
45 0 helical gear guide lifting system |
||||||
|
Objectives |
Magnification |
10X(Standard) |
20X(Option) |
50X(Option) |
100X(Option) |
||
|
Object view |
Ø |
Ø |
Ø |
Ø |
|||
|
Working distance |
|
|
|
|
|||
|
Instrument illumination |
Transmission and reflection light source: 24V/150W-halogen lamp |
||||||
|
Power |
AC110V/220V; 50Hz/60Hz |
||||||
|
Accuracy |
3 + L/50 (um) |
||||||
|
Dimension (Lx W x H) |
570*770* |
||||||
|
Weight |
150Kgs |
||||||
|
Data processor |
LED Functional Digital Readout SDS5-3PJ |
||||||
|
Optional Accessories |
20x, 50x, 100x objective and mirror; Rotary work-stage; 2D Measuring software. |
||||||
