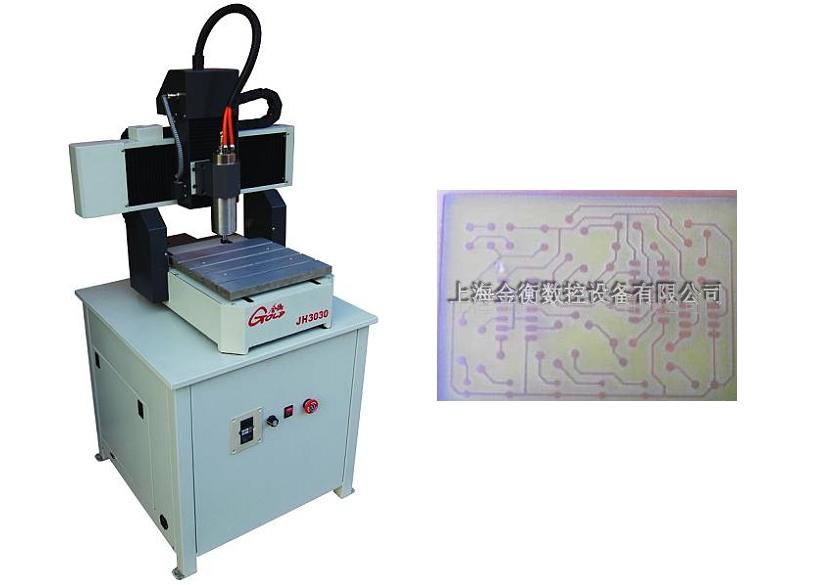

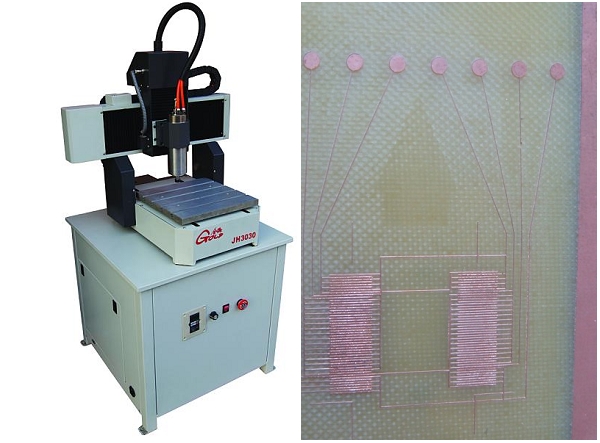

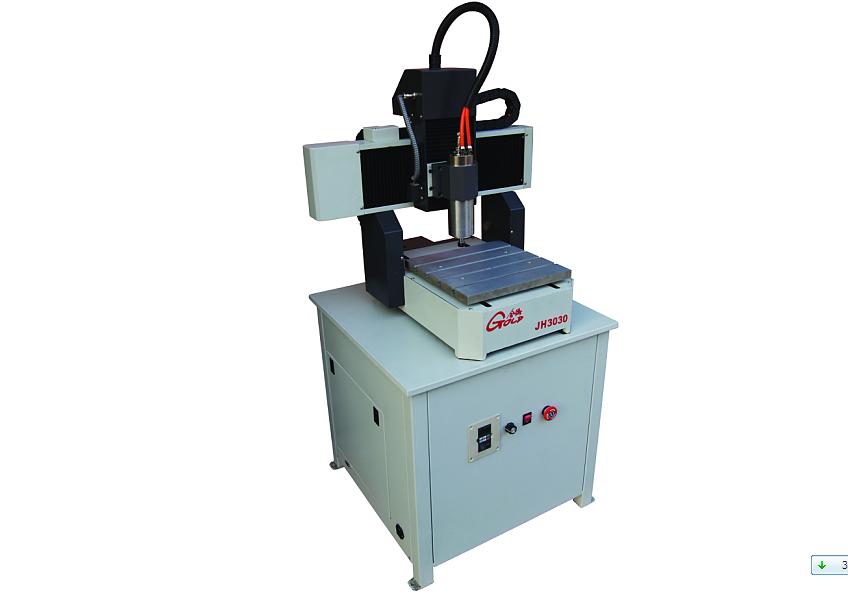

PCB drilling Engraver machine
Processing in all mould mode which guarantees higher mechanical stability
Metal casting body which assures great rigidity , moving stable and few vibration for machine body
Imported rolling ball screws for x ,y and z axis , sliding warning devices to make sure no clearance and high precision
Type3/ARTCAM and many CAD/CAM software is compatible
Application:PCB drilling Engraver machine

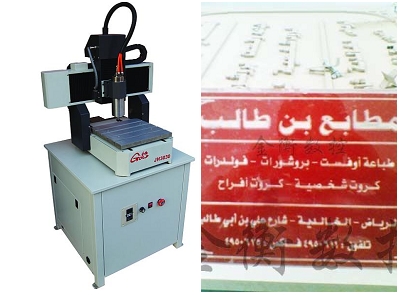

Appling to various adverting signs, name plates ,chest brand , seals ,induction signs , plain die , woody products , instrument panel and construction mould processing and making .
Powerful function , convenient application, great stability , reliable performance and economic price .
Model |
JH 3030 PCB drilling Engraver machine |
Sea port |
|
Working Area |
300*300* |
Table Size |
300* |
Spindle Motor |
800W inverter-driven spindle motor cooled by water |
X, Y, Z traveling positioning accuracy |
|
X, Y, Z repositioning positioning accuracy |
|
Table surface |
Cast-aluminum |
Frame |
Metal casting body |
X, Y Z structure |
Imported rolling ball screws for x ,y and z axis , sliding warning devices to make sure no clearance and high precision |
Max motion speed |
|
Max engraving speed |
|
Rotation Speed of Spindle |
6000-24000rpm |
Drive motors |
step motor |
Max consume power |
1KW |
Working voltage |
One phase AC 220V/50-60HZ |
Engraving Tool |
|
Operating system |
Weihong (work with computer ). DSP is optional which is able to work without computer |
Format Dictate |
HPGL or G-code |
X, Y Resolution |
|
Software compatibility |
compatible with popular CAD/CAM software: Type3/Artcam |
Payment term |
100% T/T in advance before shipment |
delivery time |
Within seven to ten days |
Document supply |
Commercial invoice ,Packing list ,Bill of lading (If another documents required ,please inform us ) |
Package size |
750*750* |
Running circumstance |
Temperature : 0-45 degree Relative humidity :30%-75% |
Warranty |
one year warranty period : spindle motor ,invertors , power supply , step motor and drive (wearing parts are not including ) |
