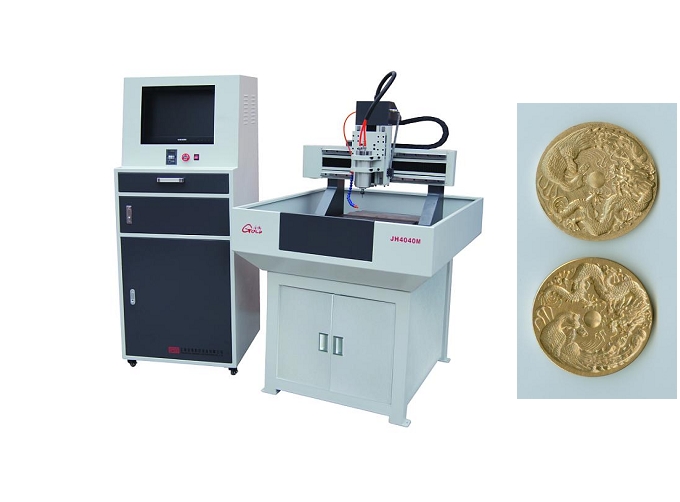

Feature for CNC Mould router
Imported linear rail for X Y and Z axis
Processing in all mould mode , movable working table, higher mechanical stability
Whole metal casting for machine body and gantry , great rigidity , moving stable and few vibration
Imported high density mould rolling ball screws for x ,y and z axis , sliding warning devices to make sure no clearance and high precision in processing
Type3/ARTCAM and many CAD/CAM software is compatible
Be good at processing various working pieces in higher efficiency and accuracy .
Application for CNC Mould router
Appling to process and make various industry moulds, fine blanking die , hot cutting die , construction mould ,adverting signs, name plates ,induction signs , chest brand , seals , bronzing board , PCB board , pressing board , instrument panel, electrode , jade ,crafts accessories , wood products , iron copper ,aluminum ,plastic board etc
Powerful function , convenient application, great stability , reliable performance and economic price .
Model |
JH |
Sea port |
|
Working Area |
400*400* |
Table Size |
400* |
Spindle Motor |
3000W inverter-driven spindle motor cooled by water |
X, Y, Z traveling positioning accuracy |
|
X, Y, Z repositioning positioning accuracy |
|
Table surface |
Metal casting |
Frame |
Whole metal casting body for machine body and gantry |
X, Y Z structure |
Imported high density mould rolling ball screws and linear rail for X ,Y and Z axis |
Max motion speed |
|
Max engraving speed |
|
Rotation Speed of Spindle |
6000-24000rpm |
Drive motors |
step motor |
Max consume power |
4KW |
Working voltage |
One phase AC 220V/50-60HZ |
Engraving Tool |
|
Operating system |
Weihong (work with computer ). DSP is optional which is able to work without computer |
Format Dictate |
HPGL or G-code |
X, Y Resolution |
|
Software compatibility |
compatible with popular CAD/CAM software: Type3/Artcam |
Payment term |
100% T/T in advance before shipment |
delivery time |
Within seven to ten days |
Document supply |
Commercial invoice ,Packing list ,Bill of lading (If another documents required ,please inform us ) |
Package size |
1220*1030* |
Gross weight |
480KGS |
Net weight |
400KGS |
Running circumstance |
Temperature : 0-45 degree Relative humidity :30%-75% |
Warranty |
one year warranty period : spindle motor ,invertors , power supply , step motor and drive (wearing parts are not including ) |
