Model

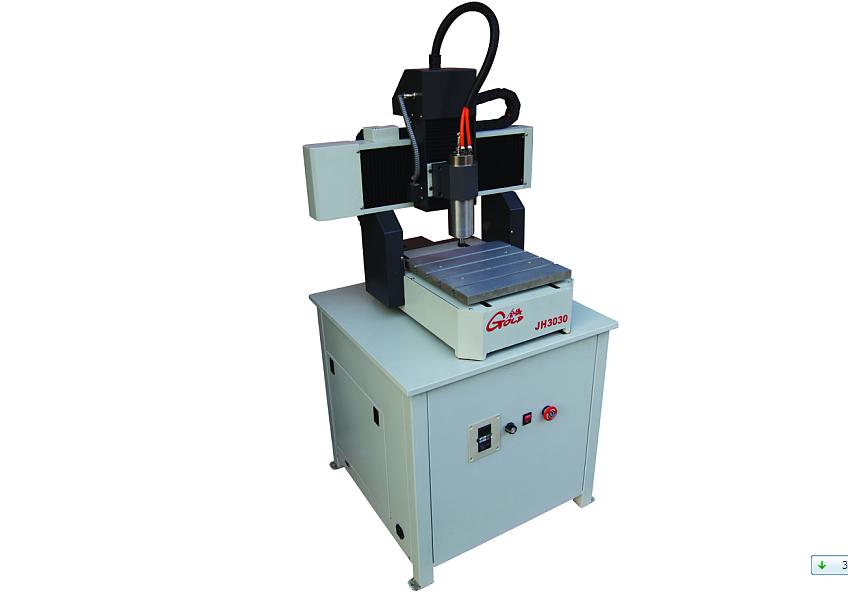

JH 3030 PCB drilling CNC Router

Sea port

Shanghai port is available .(If another port required , please inform us )

Working Area

300*300*65mm

Table Size

300*300mm

Spindle Motor

800W inverter-driven spindle motor cooled by water

X, Y, Z traveling positioning accuracy

0.01 mm

X, Y, Z repositioning positioning accuracy

0.01 mm

Table surface

Cast-aluminum

Frame

Metal casting body

X, Y Z structure

 Imported rolling ball screws for x ,y and z axis , sliding warning devices to make sure no clearance and high precision

Max motion  speed

7000mm/min

Max engraving speed

5000mm/min

Rotation Speed of Spindle

6000-24000rpm

Drive motors

step motor

Max consume power

1KW

Working voltage

One phase  AC 220V/50-60HZ

Engraving Tool

3.175mm/6mm (Standard configuration is 10 pc , with any special requirement ,please inform us)

Operating system

Weihong (work with computer ). DSP is optional which is able to work without computer

Format Dictate

HPGL or G-code

 X, Y Resolution

0.01mm

Software compatibility

compatible with popular CAD/CAM software: Type3/Artcam

Payment term

100% T/T in advance before shipment

delivery time

Within seven to ten days

Document supply

Commercial invoice ,Packing list ,Bill of lading (If another documents required ,please inform us )

Package size

 750*750*1350mm(Non-wooden package)

Running circumstance

Temperature : 0-45 degree

Relative humidity :30%-75%

Warranty

one year warranty period : spindle motor ,invertors  , power supply , step motor and drive (wearing parts are not including )
