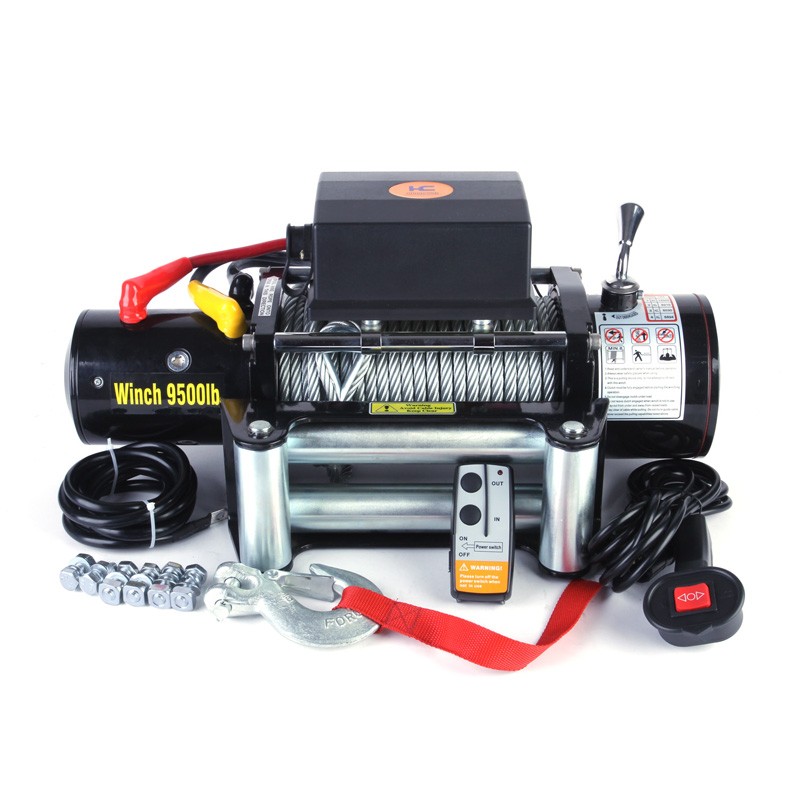

Single line rated pull

9500lb(4309kg)

Motor

6.0 hp/4.5kw.Series Wound

Main body

Sealed

Control

Remote switch,12ft(3.7m)lead

Remote Control

Included

Gear train

3 Stage Planetary

Gear reduction ratio

230.4:1

Clutch

Keyway Cam

Braking Action

Automatic braking action in the drum

Cable

28m of 8.3mm diameter

Fairlead

4-way roller fairlead

Battery

Recommended: 650CCA minimum for winching

Battery Leads

2 gauge,72"(1.83mm)

Finish

Powder coating

Weight

N.W. 35kgs  G.W 37kgs

Overall dimensions

538*160*214mm

Mounting Bolt Pattern

10” x 4.5” (254x114.3mm)

9500LBS LINE SPEED AND AMP DRAW (FIRST LAYER)

Line pull  lb(kg)

Line speed ft/min(m/min)

Current (A)

0

24(7.8)

60

2000(907)

14.4(4.4)

113

4000(1814)

10.6(3.25)

184

6000(2721)

8.5(2.6)

228

8000(3629)

7.0(2.15)

296

9500(4309)

6.4(1.95)

350

9500LBS LINE PULL AND CABLE CAPACITY

Layer of cable

1

2

3

4

Rated line

Lbs

9500

7120

6670

5720

pull per layer

Kgs

4309

3230

3025

2595

Cumulative

Ft

22.6

33.46

72

92

Cable capacity

M

6.9

10.2

22

28
