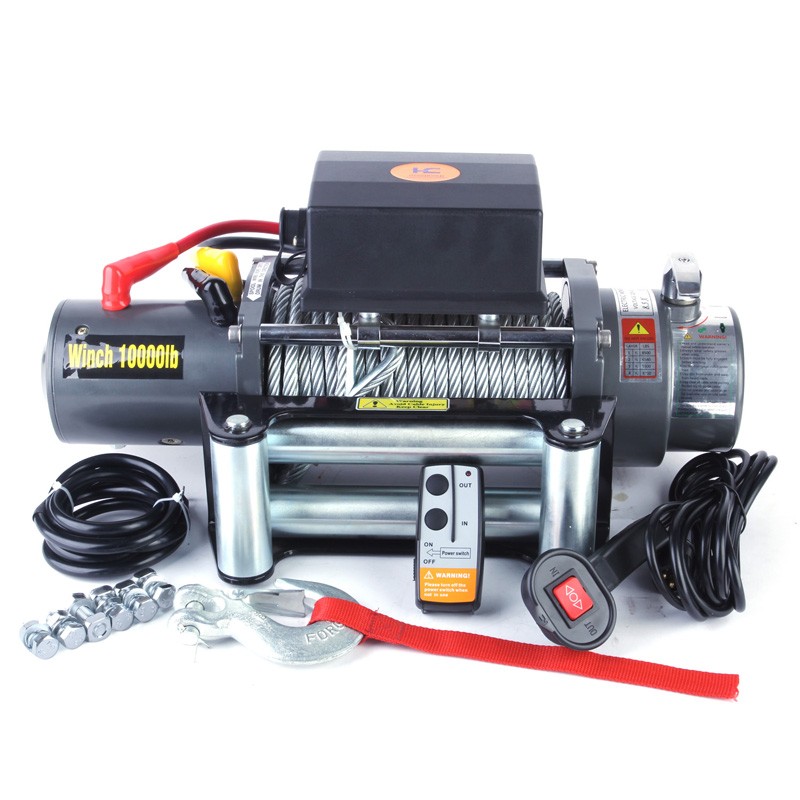

SC10.0X 12V or 24V
10000LBS 4x4 Electric Winch
|
Single line rated pull |
10000lb(4536kg) |
|
Motor |
6.0 hp/4.5kw.Series Wound |
|
Main body |
Sealed |
|
Control |
Remote switch,12ft(3.7m)lead |
|
Remote Control |
Included |
|
Gear train |
3 Stage Planetary |
|
Gear reduction ratio |
191:1 |
|
Clutch |
Keyway Cam |
|
Braking Action |
Automatic braking action in the drum |
|
Cable |
28m of 9.1mm diameter |
|
Fairlead |
4-way roller fairlead |
|
Battery |
Recommended: 650CCA minimum for winching |
|
Battery Leads |
2 gauge,72"(1.83mm) |
|
Finish |
Powder coating |
|
Weight |
N.W. 36kgs G.W 38kgs |
|
Overall dimensions |
(L*W*H) 526.3x160x179mm |
|
Mounting Bolt Pattern |
10” x 4.5” (254x114.3mm) |
10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
|
Line Pull
|
Lbs |
NO LOAD |
2000 |
4000 |
6000 |
8000 |
10000 |
|
kgs |
909 |
1814 |
2721 |
3629 |
4536 |
||
|
Line Speed
|
ft/min |
35.50 |
20.60 |
15.19 |
12 |
9.84 |
8.07 |
|
m/min |
10.82 |
6.28 |
4.63 |
3.66 |
3.0 |
2.46 |
|
|
Motor Current |
amps |
67 |
131 |
198 |
261 |
320 |
365 |
10000LBS LINE PULL AND CABLE CAPACITY
|
Layer of cable |
1 |
2 |
3 |
4 |
|
|
Rated line pull per layer |
Lbs |
10000 |
8000 |
6670 |
5720 |
|
Kgs |
4536 |
3629 |
3025 |
2595 |
|
|
Cumulative Cable capacity |
Ft |
21.3 |
40 |
72.0 |
92 |
|
M |
6.5 |
12 |
22 |
28 |
|
Detail features to Note:
1. Motor
Heavy duty winch motor, with high torque force, delivers plenty of power.
Motor is sealed and insulated, well working under water.
2. Gears
Gears are full steel, crafted with cold extrusion, with great toughness.
3. Keyway cam (Rotating clutch)
Free and easy operation of engagement and free spool.
4. Transmission shaft
Transmission shaft is precision machinery made, strong and perfectly straight, to reduce vibration with break and prolong its life.
5. Bilateral brake
Or called two way brake. 100% automatically load-hold bilaterally brake and absolutely without stuck!
