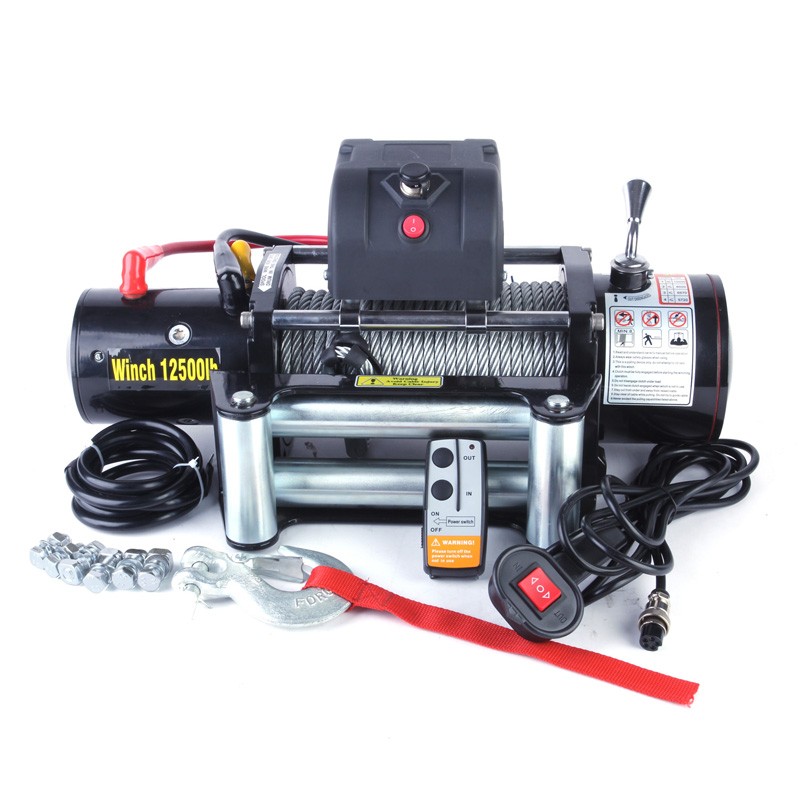

12500LBS Heavy Duty Electric Winch

Single line rated pull

12500lb(5670kg)

Motor

6.6 hp/4.85kw.Series Wound 12V

Main body

Sealed

Control

Remote switch,12ft(3.7m)lead

Remote Control

Included

Gear train

3 Stage Planetary

Gear reduction ratio

230.4:1

Clutch

sliding ring gear

Braking Action

Two way braking action in the drum

Cable

26m of 9.3mm diameter

Fairlead

4-way roller fairlead

Battery

Recommended: 650CCA minimum for winching

Battery Leads

2 gauge,72"(1.83mm)

Finish

Powder coating

Weight

N.W. 38kgs  G.W 39kgs

Overall dimensions

(L*W*H) 538 x 160 x 214mm

Mounting Bolt Pattern

10” x 4.5” (254x114.3mm)

12500LBS LINE SPEED AND AMP DRAW (FIRST LAYER)

Line pull  lb(kg)

Line speed ft/min(m/min)

Current (A)

0

21.3(6.5)

67

2000(907)

11.5(3.5)

131

4000(1814)

9.4(2.85)

198

6000(2721)

7.9(2.4)

261

8000(3629)

6.5(2.0)

320

10000(4543)

5.8(1.75)

375

125000(56700)

4.26(1.3)

405

12500LBS LINE PULL AND CABLE CAPACITY

Layer of cable

1

2

3

4

Rated line

Lbs

12500

9210

8030

6894

pull per layer

Kgs

5670

4178

3642

3123

Cumulative

Ft

20.3

42.6

72

85.5

Cable capacity

M

6

13.2

22.1

26
