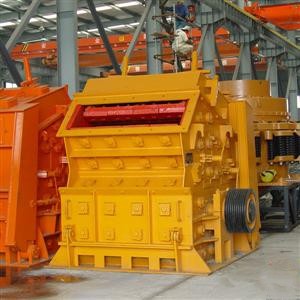

Impact Crusher Description:
This series of impact crusher are designed for crushing ores and rocks with particle sizes less than 100-500mm and compression strength no more than 320MPa.It has a feature of big crushing ratio, high-efficiency crushing, cubic shape, selectable crushing, etc. It is widely used in highway, hydropower construction, and airport and building industries.
Impact Rock Crusher Features:
1.Efficient and energy saving
2.special structure
3.connected without key
4high chrome hammer
5unique impact liner
6cubic shape of product,
7adjustable output size
8easy maintenance
9reliable operation
Impact Crusher Operating principle:
When impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers with high-tech raw material. When the crushed materials get into the impact crusher inner space where the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact crusher chamber repeatedly. The process won't stop till the materials in the impact crusher are crushed to the required size and then discharged from outlet.
Impact Crushers Parts:
Impact Crushers mainly consist of two Impact plates,one is fixed Impact plate,the other is movable Impact plate.In addition,there are flywheel,toggle plate whose application is to protect Impact plate,and tension rod used to adjust the size of discharging open.
