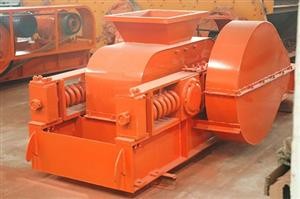

Hydraulic Roller Stone Crusher Description:
The Roller crusher can be classified into double roller crusher and four roller crusher according to the roller quantity. The Roller Crusher bears the features of stable operation, easy maintenance, low cost, output size adjustable. The Roller Crusher can be used in the processing of fragile materials in cement, metallurgy, chemical, power generation, coal industries.

Feature Of Hydraulic Roller Stone Crusher

low energy consumption;
2. adjustable space between rollers of the crusher, thus improving the capacity;
3. the movable and fixed rollers are interconnected by the coupling, thus obviating the frequent replacement of the belts.

Working Principle Of Hydraulic Roller Stone Crusher

Through the feed opening, the raw materials fall to between the two rollers, after crushed, the final products naturally. When there are unbreakable materials or the material is too hard, the roller will concede automatically under the effects of spring and hydraulic pressure, which will widen the clearance between the rollers and make the hard or unbreakable so as to avoid damaging the machine. The clearance between the two rollers can be adjusted to change the sizes of final products.

Hydraulic Roller Stone Crusher main parts:
Drive unit, fixed shaft assembly, mobile shaft assembly, hood assembly, frame assembly, linkage and safety device and gearbox etc. Parts, which are widely used in cement, metallurgy, chemical industry, power plant, coal etc. Industries to break and process the brittle and tough material.
