PCΦ1000×1000:

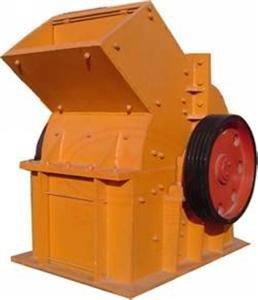

Hammer Crusher Description:
Hammer crusher for crushing all kinds of hard and abrasive weak materials. The compressive strength of the material does not exceed 100MPa, water content less than 15%. Was broken material cut iron, coal, salt, chalk, gypsum, brick, limestone. Also used broken fiber structure, strong flexibility and toughness of broken wood, paper or broken asbestos cement waste to recover asbestos fibers and so on.

Feature Of Hammer Crusher:
1) High reliability
2) Flexible capacity
3) Over-loading protection
4) High efficiency

Working principle Of Hammer Crusher:
The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being recrushed until they reach the required size.

Hammer Crusher main parts:
Hammer crusher for the main working parts with a hammer (or hammer) in the rotor.Rotor from the spindle, disk, pin, and hammer formed.
