Home > Products Show > IP Camera > Waterproof IP Camera > Waterproof IP Camera (PUB-VH602-WS-IR)

Waterproof IP Camera (PUB-VH602-WS-IR)

Products Visitors:912

Product Name:Waterproof IP Camera (PUB-VH602-WS-IR)
Size:253*145*116mm
Model:PUB-VH602-WS-IR
Package:1pc/ctn

Products description: Waterproof IP Camera (PUB-VH602-WS-IR)

Night IP Camera,IP Night Camera,

Waterproof IP Camera,Surveillance IP Camera

Model No.:PUB-VH602-WS-IR

New Feature:

1):Support Gmail/Hotmail function
2): Free DDNS for Remote viewing
3): Freely control alarm sound ON/OFF
4): Freely control alarm record ON/OFF

Basic Feature:

> H.264 video compression format
> Support two-way audio function
> Support audio input and output
> Freely control upload image to FTP
> Support up to 9 users online simultaneously
> Motion detection alert with snapshots via email
> Allow remote view & record from anywhere anytime
> Multi-level user management with password protection
> Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
> Support both WEP & WPA WPA2 encryption for wireless
> Support Mobile phone login from User Interface via browser directly
> Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

Specification:

Model: PUB-VH602-WS-IR

Image Sensor

Image Sensor

1/4" Color CMOS Sensor

Display Resolution

640 x 480 Pixels(300k Pixels)

Lens

f: 6 mm, F:2.0 (IR Lens)

Mini.Illumination

0.5Lux

Lens

Lens Type

Glass Lens

Viewing Angle

60 Degree

Audio

Input

1 channel audio input

Output

1 channel audio output

Audio Compression

G.711

Video

Image Compression

H.264, MJPEG

Image Frame Rate

30fps(VGA),30fps(QVGA)

Resolution

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz or Outdoor

Video Parameters

Brightness, Saturation , Contrast ,Hue

Communication

Ethernet Interface

Build in 10/100Mbps,Auto MDI/MDIX , RJ-45

Supported Protocol

TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS RTSP RTP RTCP.

Wireless Standard

IEEE 802.11b/g/n

Data Rate

802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.)
802.11n: 150Mbps (Max.)

Wireless Security

WEP & WPA WPA2 Encryption

Physical

Infrared Light

30 IR LEDs, Night visibility up to 35 meters

Dimension

175(L) x98(W) x98mm(H)

Gross Weight

App. 1400g

Color Box

250*145*125mm

Net Weight

App. 1200g ( accessories included)

Power

Power Supply

DC 12V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption

9 Watts (Max.)

Environment

Operate Temper.

0° ~ 55°C? (14°F ~ 131°F)

Operating? Humidity

20% ~ 85% non-condensing

Storage Temper.

-10°C ~ 60° (14°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

PC System Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista/7

Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification

CE, FCC, RoHS

Warranty

Limited 1-year warranty

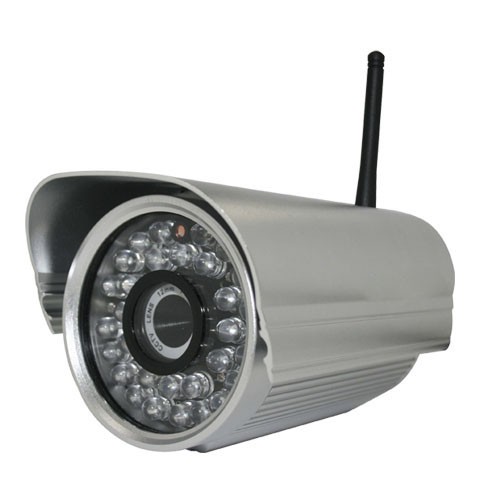

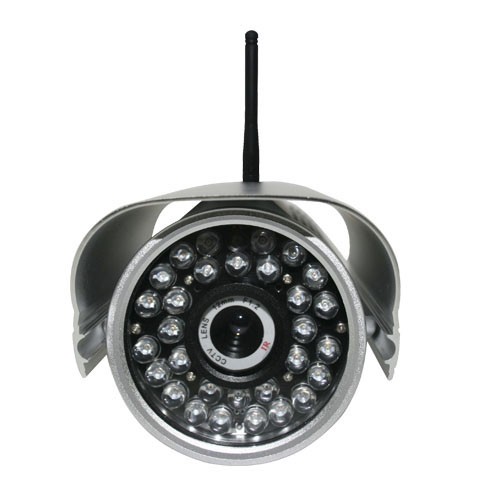

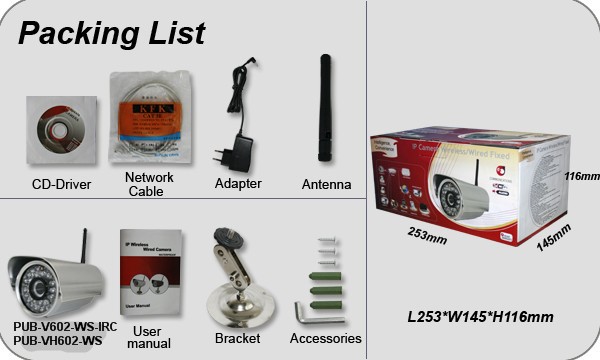

Product Images: Waterproof IP Camera (PUB-VH602-WS-IR)
