Specification:

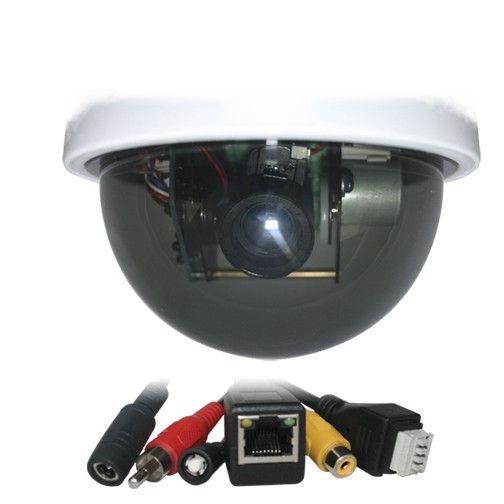

Model: PUB-V901-Z

Image Sensor

Image Sensor

1/4" Color CMOS Sensor

Display Resolution

640 x 480 Pixels(300k Pixels)

Lens

3x Optical Zoom(4mm-9mm)

Mini. Illumination

0.5Lux, F2.0

Lens Type

Glass Lens

Viewing Angle

30.7°~ 69°

Audio

Input

1 channel audio input

Output

1 channel audio output

Audio Compression

ADPCM

Video

Image Compression

MJPEG

Image Frame Rate

15fps(VGA),30fps(QVGA)

Resolution

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz, Outdoor

Video Parameters

Brightness, Contrast

Communication

Ethernet Interface

10Base-T/100Base-TX Ethernet Port

Supported Protocol

TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS

Physical

Pan/Tilt Angle

Horizontal:355° & Vertical: 90°

Alarm Input

1 Channel on/off Input

Alarm Output

1 Channel relay Output

Power

Power Supply

DC 12V/2.0A (EU,US adapter or other types optional)

Power Consumption

8 Watts (Max.)

Environment

Operate Temper.

0° ~ 55°C

Operating Humidity

20% ~ 85% non-condensing

Storage Temper.

-25°C ~ 55°

Storage Humidity

0% ~ 90% non-condensing

PC System Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista/7

Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification

CE, FCC, RoHS

Warranty

Limited 1-year warranty
