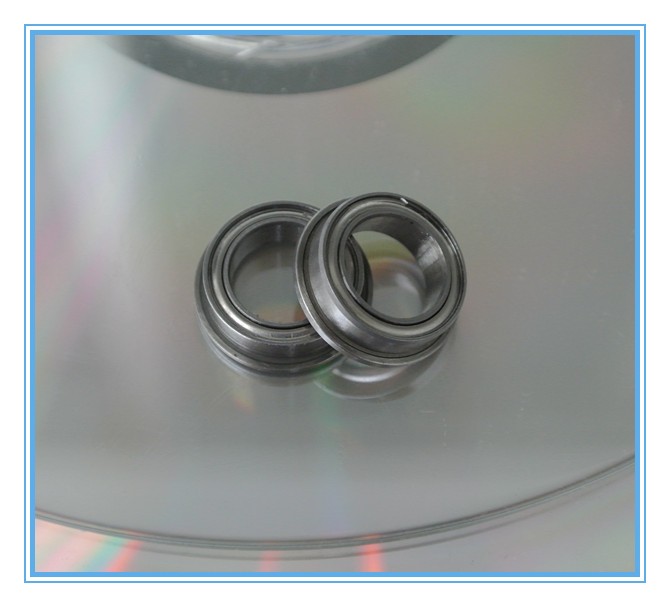

Flanged/Flange Miniature Bearing
Main Specifications:
| Metric Series | |||
| Dimensions | ZZ(Metal Shield) | Dimensions | ZZ(Metal Shield) |
| 1.2x4x2.5mm | MF41XZZ | 7x13x4mm | MF137ZZ |
| 1.5x4x2mm | F681XZZ | 7x14x5mm | F687ZZ |
| 1.5x5x2.6mm | F691XZZ | 7x17x5mm | F697ZZ |
| 1.5x6x3mm | F601XZZ | 7X19X6 mm | F607ZZ |
| 2x5x2.3mm | F682ZZ | 7x22x7 mm | F627ZZ |
| 2x5x2.5mm | MF52ZZ | 7x26x9 mm | F637ZZ |
| 2X6X2.5 | MF62ZZ | 8x12x3.5mm | MF128ZZ |
| 2x6x3mm | F692ZZ | 8x14x4mm | MF148ZZ |
| 2x7x3mm | MF72ZZ | 8X16X5 mm | F688ZZ |
| 2x7x3.5mm | F602ZZ | 8X16X6 mm | F688ZZW6 |
| 2.5x6x2.6mm | F682XZZ | 8x19x6mm | F698ZZ |
| 2.5x7x3.5mm | F692XZZ | 8x22x7mm | F608ZZ |
| 2.5x8x3mm | MF82XZZ | 8x11x11mm | F608ZZW11 |
| 2.5x8x4mm | F602XZZ | 8x24x8mm | F628ZZ |
| 3x6x2.5mm | MF63ZZ | 8x28x9mm | F638ZZ |
| 3x7x3mm | F683ZZ | 9x14x4.5mm | F679ZZ |
| 3x8x3 mm | MF83ZZ | 9x17x5mm | F689ZZ |
| 3x8x4mm | F693ZZ | 9x17x6mm | F689ZZW6 |
| 3x9x4mm | MF93ZZ | 9x20x6mm | F699ZZ |
| 3X9X5 mm | F603ZZ | 9x24x7mm | F609ZZ |
| 3X10X4 MM | F623ZZ | 9x26x8mm | F629ZZ |
| 3X13X5 MM | F633ZZ | 9x30x10mm | F639ZZ |
| 4x7x2.5mm | MF74ZZ | 10x15x4mm | F6700ZZ |
| 4x8x3mm | MF84ZZ | 10x16x4mm | MF1016ZZ |
| 4x9x4mm | F684ZZ | 10x16x5mm | MF1016ZZ/W5 |
| 4x10x4mm | MF104ZZ | 10x19x5mm | F6800ZZ |
| 4x11x4mm | F694ZZ | 10X19X7 | F63800ZZ |
| 4x12x4mm | F604ZZ | 10x22x6mm | F6900ZZ |
| 4X13X5 mm | F624ZZ | 10X26X8 mm | F6000ZZ |
| 4X16X5 mm | F634ZZ | 10X30X9 mm | F6200ZZ |
| 5x8x2.5mm | MF85ZZ | 10X35X11 | F6300ZZ |
| 5x9x3mm | MF95ZZ | 12x18x4mm | F6701ZZ |
| 5x10x4mm | MF105ZZ | 12x21x5mm | F6801ZZ |
| 5x11x4mm | MF115ZZ | 12x21x7mm | F63801ZZ |
| 5X11X5mm | F685ZZ | 12x24x6mm | F6901ZZ |
| 5X12X4mm | MF125ZZ | 12x28x7mm | F16001ZZ |
| 5x13x4mm | F695ZZ | 12x28x8mm | F6001ZZ |
| 5X14X5 mm | F605ZZ | 12x32x10mm | F6201ZZ |
| 5X16X5mm | F625ZZ | 12x24x6mm | F6301ZZ |
| 5X19X6mm | F635ZZ | 13X19X4mm | MF1319ZZ |
| 6x10x3mm | MF106ZZ | 13X20X4mm | MF1320ZZ |
| 6x12x4mm | MF126ZZ | 15X21X4mm | F6702ZZ |
| 6x13x5mm | F686ZZ | 15X24X5mm | F6802ZZ |
| 6x15x5mm | F696ZZ | 15X28X7 mm | F6902ZZ |
| 6x16x5 mm | F696AZZ | 15x32x8mm | F16002ZZ |
| 6X17X6 mm | F606ZZ | 15x32x9mm | F6002ZZ |
| 6X19X6 mm | F626ZZ | 15x35x11mm | F6202ZZ |
| 6X22X7 mm | F636ZZ | 15x42x13mm | F6302ZZ |
| 7x11x3mm | MF117ZZ | ||
| Inch Series | ||
| Dimension | ZZ(Metal Shield) | 2RS(Rubber Seal) |
| 5/64"X1/4"X9/64" | FR1-4ZZ | FR1-4-2RS |
| 3/32"X3/16"X3/32" | FR133ZZ | FR133-2RS |
| 3/32"X5/16"X9/64" | FR1-5ZZ | FR1-5-2RS |
| 1/8"X1/4"X7/64" | FR144ZZ | FR144-2RS |
| 1/8"X5/16"X9/64" | FR2-5ZZ | FR2-5-2RS |
| 1/8"X3/8"X9/64" | FR2-6ZZ | FR2-6-2RS |
| 1/8"X3/8"X5/32" | FR2ZZ | FR2-2RS |
| 1/8"X1/2"X0.1719" | FR2AZZ | FR2A-2RS |
| 5/32"X5/16"X1/8" | FR155ZZ | FR155-2RS |
| 3/16"X5/16"X1/8" | FR156ZZ | FR156-2RS |
| 3/16"X3/8"X1/8" | FR166ZZ | FR166-2RS |
| 3/16"X1/2"X0.196" | FR3ZZ | FR3-2RS |
| 3/16"X5/8"X0.196" | FR3AZZ | FR3A-2RS |
| 3/16"X11/16"X1/4" | F1601ZZ | F1601-2RS |
| 1/4"X3/8"X1/8" | FR168ZZ | FR168-2RS |
| 1/4"X1/2"X3/16" | FR188ZZ | FR188-2RS |
| 1/4"X5/8"X0.196" | FR4ZZ | FR4-2RS |
| 1/4"X11/16"X1/4" | F1602ZZ | F1602-2RS |
| 1/4"X3/4"X9/32" | FR4AZZ | FR4A-2RS |
| 5/16"X1/2"X5/32" | FR1810ZZ | FR1810-2RS |
| 5/16"X5/8"X5/32" | FR1810AZZ | FR1810A-2RS |
| 3/8"X5/8"X5/32" | FR1038ZZ | FR1038-2RS |
| 3/8"X7/8"X9/32" | FR6ZZ | FR6-2RS |
| 1/2"X3/4"X5/32" | FR1212ZZ | FR1212-2RS |
Beside ZZ(Metal Shield) and 2RS(Rubber Seal) , Open(without shield/seal) , S(Stainless) , /C(Ceramic) will be also for your options.
Packaging & Payment & Delivery:
Normal Packing: 10 pcs in a plastic tube,10 tubes in one paper box.
Industrial-packing: 10 pcs in a soft shrink-wrap weld with printing stick-label as Brand .
Supply OEM Packing: according to your requirements.
Payment terms: T/T, Paypal, Western Union,L/C,Cash
Delivery way:
1. Express (TNT,EMS. DHL,UPS,FedEx, SF Express etc) 3-5 work days
2. Chinese Regular Mail/ Post Mail 10-20 days
3. By Sea. 30-40days
After Sales Service:
Please kindly check the package after you received the goods, if you get wrong products/ quality problems/ short quantity,
please get back us,we will consider to replace/refund/ resend them to you accordingly.
