Descriptions:

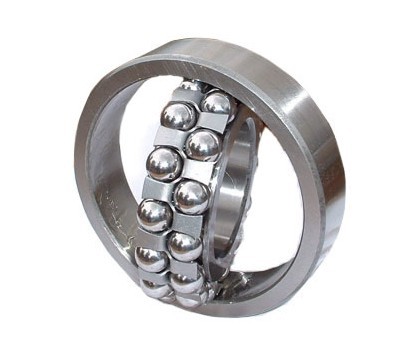

Self-aligning ball bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed versions.

This type of ball bearing is recommended when alignment of the shaft and housing is difficult and the shaft may flex. The outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. Pressed steel cages are usually used. Since the contact angle is small, the axial load capacity is low. The permissible dynamic misalignment is approximately 0.07 to 0.12 radian (4 to 7 degrees) under normal loads.

However, depending on the surrounding structure, such an angle may not be possible.

Features :
With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings are characteristic of their spherically formed outer ring raceways allowing for misalignment within 3 degree deflection between inner ring and outer ring, so as to compensate concentricity and deflection errors.

Applications

Self-aligning ball bearings are usually used for:

lPapermaking Machinery

lGearboxes

lSemiconductors
