Descriptions:

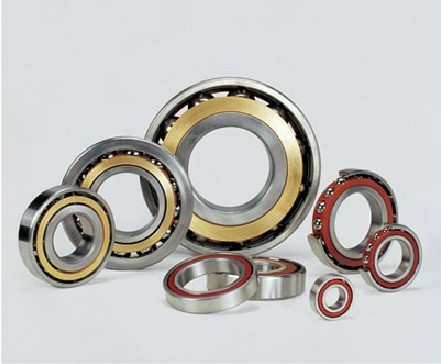

Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.
Single row angular contact ball bearings
Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. The raceways of the inner and outer rings are offset in relation to each other in the direction of the bearing axis. The bearings are available in open and sealed versions. Their self-alignment capacity is very small.
Double row angular contact ball bearings
Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. They correspond in design to single row angular contact ball bearings in pairs in an O arrangement but give a narrower design than these. They differ in the size of their contact angle and the design of the bearing rings.
The bearings are available in open and sealed versions. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields. Sealed bearings are maintenance-free and, as a result, allow particularly economical bearing arrangements. The self-alignment capacity of angular contact ball bearings is very small.
Features :
Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads.
Expanded options include special lubricants, cage materials, preloads and coatings for additional corrosion resistance.
Applications:
Angular contact ball bearings are engineered for use in high-speed, high precision applications for:Agriculture,Chemical,General industry,Utilities,Electric motorsElectric motors, automotive applications, home appliances, industrial equipment.etc
