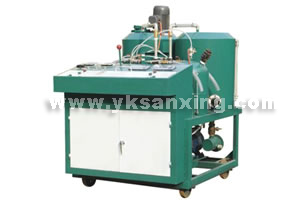

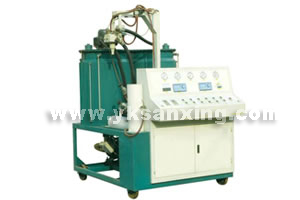

Features of Low Pressure Polyurethane Foam Machine:
1. Being controlled by PLC, this machine delivers high accuracy, simple operation and convenient maintenance.
2. The alarming relay will give alarms when pre-set first injection is finished.
Application of Low Pressure Polyurethane Foam Machine:
This steel construction machine is designed for continuously injecting rigid or soft polyurethane foam for various thermal insulation purposes.
Technical Specification of Low Pressure Polyurethane Foam Machine:
1) Main pump motor power: 5.5kW
2) Mixing motor power: 0.55kW
3) Hydraulic pump motor power: 2.2kW
4) Auto glue filling motor power: 1.5kW (two set for two tanks)
5) Flux: 5~30kg per minute
6) Capacity of the tanks for polyurethane glue: 180kg each, auto filling glues
7) PLC automatic control: PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs.
8) Equipped piston type counting pump: HJ30-50 (two), adjusting accuracy 0.05%.
9) Generating pressure: 8-10MPa (one 0.8 m3 air compressor is equipped by buyer)
10) Machine weight: about 800kg
11) Dimension: 1370mm x 1350mm x 2250mm
