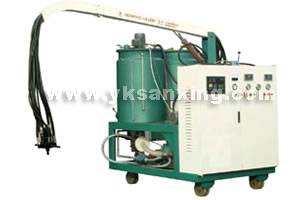

Features of High Pressure Polyurethane Foam Machine:
1. Accurate measurement: use measure pump with slow speed and high precision, the fluctuation of temperature, pressure and viscosity will not change the mixed proportion, and it can reach highest ratio of quality goods.
2. With advanced pour point structure, reliable performance, convenient operation, easy maintain, this steel construction machine is able to move in the direction of front, back, left, right, upper and below.
3. PLC is adopted.

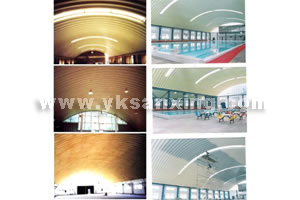

Application of High Pressure Polyurethane Foam Machine
This steel engineering machine is used to produce horniness and semi-horniness, such as instrument plate, cold locker, active cold storage board, etc.
Technical Specification of High Pressure Polyurethane Foam Machine:
1) Main pump motor power: 15kW x 2
2) Mixing motor power: 0.55kW (installed inside A tank)
3) Hydraulic pump motor power: 2.2kW
4) Flux: 40-400kg per minute
5) Injecting time: 0.1-99.9s
6) Injecting pipe high pressure protected by pressure gauge with electric contact
7) Filters for Polyol and ISO glues: DN110 self-clean filter
8) Hydraulic station: hydraulic tank 20L, integrated with over-flow valve, safety valve, pressure gauge, discharge valve, electromagnetic valve, anti-shock pressure gauge, etc.
9) High pressure mixing head: developed by ourselves, high precision, hydraulic control, L type, self-clean, solvent free, life is more than 300 thousand times (if more than 300 thousand times, this head can be repaired and used again); Outer diameter of the nozzle: 24mm.
10) Temperature control system for tanks: the two tanks are heated by waters in the interlayer of the tanks; Equipped with two 2kW heaters; Electronic numeric displayer temperature controller is equipped to keep invariable temperature needed for glues.
11) Pressure pipes are chosen from Chinese domestic qualified supplier.
12) Auto-filling devices for two tanks: two self-absorbing pumps, motor power 1.5kW each.
13) Capacity of the tanks for polyurethane glue: 180 kg each
14) PLC automatic control: PLC programmable; Special PLC system from Chinese domestic which can save 99 programs.
15) Equipped piston type counting pump: adjusting accuracy 0.05%.
16) Generating pressure: 80-100MPa
17) Suspending arm length 2.5m, rotated in 270°, horizontal injecting or vertical injecting.
18) Dimension:
Main body: about 1590 x 1200 x 2400mm
Tanks: 720 x 1550 x 2400mm
19) Weight: about 2500kg
