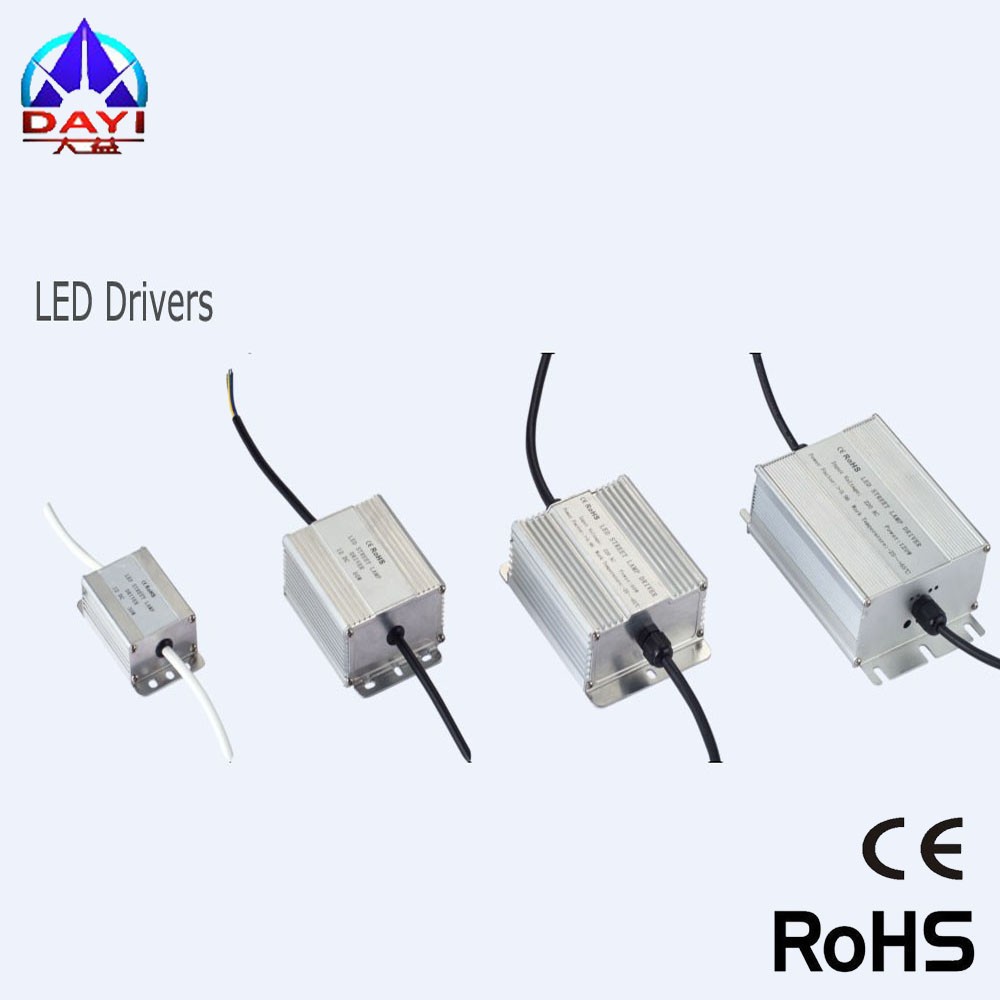

50W/80W/120W/160W LED Drivers,power supply,power source.
LED Drivers,power supply,power source,for LED lamps.
Be applied to flat fluorescent lights,street lights,led bulbs,led ceiling lamp and etc.
| 120W LED Driver | |
| Specification | |
| Input voltage | 86~265VAC |
| Input frequency | 47~63HZ |
| PFC | >0.96 |
| Inrush current | cold start,25A/115VAC,50A/230VAC |
| Output voltage | 28V~38V |
| Output current | 3.5A |
| Ripple & Noise | ≤5% |
| Output voltage liner regulation | ±5% |
| Output power | 120W |
| Over load protection | 105%~150% output shutdown |
| Over voltage protection | 115%~135% of output voltage |
| Startup type | Slow start |
| Withstand voltage | I/P-O/P:2.5KV;I/P-FG:1.5KV;1min |
| Working temperature | -25~50℃ |
| Safety standard | Design refer to EN60950 |
| EMC standard | Design refer to EN55022 class B,EN61000-4-2,3,5,EN60555-2,3 |
| Dimension | 100*90*46mm |
