solar street lamp

Products Visitors:1735

Products description:


Supplier Details
Company Name : Hechuang Electronics Co., Ltd
Contact Person : matthew
Tel : 86-574-1709871561
17098715616
Fax : 86-574-65566655
Email : info@dayeled.com
Address : Model City,Ninghai County,NingboCity,Zhejiang Province
WebSite :  http://www.yeskey.com/space/dayeeled1751/
http://www.dayeled.com/
  • Products description:

Specifications:



Led street lamp:



Power: 40W
LED qty:  40pieces(1W Epistar LED)
Lumen:  4400lm
Temp up at work:   <20℃
Power Efficiency: >88%
Illuminate range: 20-28m
Applicable height: 4-7m
Input voltage: 12/24V DC，110V/220V AC
Height-center luminance: 6m-28lux
8m-18lux
CRI Ra:  ≥80
LED color temp: White(warm/neutral/cool)
Frequency: 50Hz
Lifespan: >50,000hours
Moisture allowed: ≤95%
Power factor: 0.95
NW/GW: 3.8/4.5KG
Package: 585×275×190mm
Certification: CE,ROHS
Warranty: 3 years
Shell Material: Aluminum alloy( die casting)



Solar panel:



Nominal power Pm       85W
Power allowance        ±3%
Optimized working voltage Vm 17.6V
Optimized working current Im 4.82A
Open circuit voltage Voc   22.2V
Short circuit current Isc   5.29A
Module efficiency       13.50%
Withstanding voltage     DC715V
Dimension of module (mm)   1210*540*30
Net weight (kg)        8.5



High Efficiency
12V DC standard output
CE,TUV junction box
Lifetime:25 years
Warranty:5 years
90% power 10 years
80% power 20 years

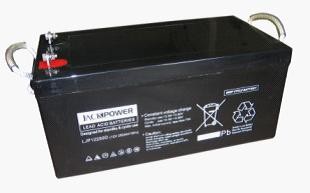

Battery:



Type        :(SMF) Sealed Mainenace Free Car Battery



Material  : Lead-Acid Storage Battery



Size         : 404*170*203*228 mm( L*W*H*TH)



Voltage   : 12 v


Rated Capacity: 100 AH ( 20HR, AH )



Layout: 0/1( - | + )


Terminal Type: A/B ( Standard Terminal )


OEM: OK



Controller:

Rated Wind Input Power

200w-600w

Rated PV Input Power(12v/24v)

150/300w

Rated Battery Voltage

12v/24v auto detection

Control Mode

PWM

Display Method

LCD

Display Parameter

Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current,

PV Voltage,PV Charge Current,PV Power, Battery capacity, state of overvoltage,undervoltage,overload,short-circuit,day/night .Etc

Standard communication interface

RS232( RS485,RJ45,GPRS optional)

Cooling Method

Natural cooling

Temperature compensation(optional)

4mV/°C/2V ,–35°C--+80°C ,accuracy ±1°C

Protection Grade

IP26

Protection

Solar panel reverse-charge protection, Solar panel reverse-connect protection, Battery reverse-connect protection, Battery open circuit protection, wind turbine automatic brake and Manual brake protection

Operation Ambient Temperature/ Humidity

-4~- 122°F(-20°C- 50°C)/35~85%RH(no condensing)

Operation Altitude

≤2000m

Size(mm)

178 X 146 X 80

Weight(KG)

1.5

We can adjust configurations and parameters according to individual requirement.





Please advice your peak rediation ,continuous raining days,working time per day,thus we could match the solar ,battery,controller well!Thanks!

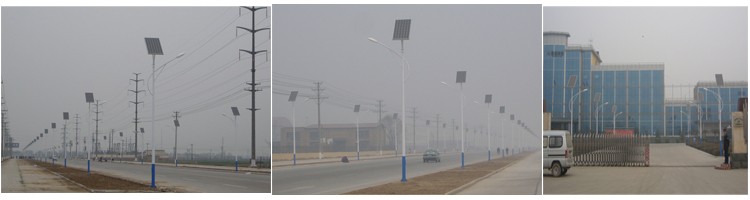

  • Product Images:
