Specifications:
led street lamp:
Power: |
30W |
LED qty: |
30pieces(1W Epistar LED) |
Lumen: |
3300lm |
Temp up at work: |
<20℃ |
Power Efficiency: |
>88% |
Illuminate range: |
14-20m |
Applicable height: |
3-7m |
Input voltage: |
12/24V DC,110V/220V AC |
Height-center luminance: |
4m-30lux |
6m-15lux |
|
CRI Ra: |
≥80 |
LED color temp: |
White(warm/neutral/cool) |
Frequency: |
50Hz |
Lifespan: |
>50,000hours |
Moisture allowed: |
≤95% |
Power factor: |
0.95 |
NW/GW: |
3.8/4.5KG |
Package: |
585×275×190mm |
Certification: |
CE,ROHS |
Warranty: |
3 years |
Shell Material: |
Aluminum alloy( die casting) |
solar panel:
Model | CNCB85W-12 |
Nominal power Pm | 85W |
Power allowance | ±3% |
Optimized working voltage Vm | 17.6V |
Optimized working current Im | 4.82A |
Open circuit voltage Voc | 22.2V |
Short circuit current Isc | 5.29A |
Module efficiency | 13.50% |
Withstanding voltage | DC715V |
Dimension of module (mm) | 1210*540*30 |
Net weight (kg) | 8.5 |
Battery:
Dry Charged Car Battery N100 100AH
1. Model: N100
2. Capacity(C20): 120Ah
3. Size: 404*170*203*228 mm
Dscription:
1.Standard:JIS
2.Type :(SMF) Sealed Mainenace Free Car Battery
3.Material : Lead-Acid Storage Battery
3.Size : 404*170*203*228 mm( L*W*H*TH)
4.Voltage : 12 v
5.Rated Capacity: 100 AH ( 20HR, AH )
6.Layout: 0/1( - | + )
7.Terminal Type: A/B ( Standard Terminal )

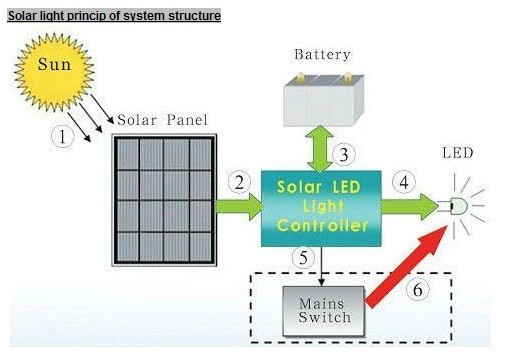

please advice the peak radiation ,continuous raining days ,working time per day,thus we can match the suitable solar panel ,battery,and controller.
