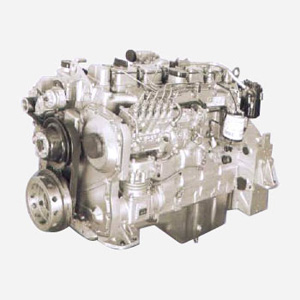

6CL Diesel Engine for Trucks was developed by elongating the piston stroke of 6C diesel engine. It is ideal power for a new generation.
GOOD RELIABILITY Optimized design and high quality components ensure good engine reliability with a first overhaul interval of 400.000km.
COMPLIANCE WITH EMISSION STANDARDS Meet EuroⅡ emissions regulations with mechanical fuel system and Euro Ⅲ emissions regulations with electronic fuel system.
GOOD FUEL ECONOMY Optimized engine development ensures a wide range of low fuel consumption with minimum BSFC below 200g/kWh
GOOD APPLICATION ADAPTATION
Inter-changeable with 6C engine to achieve good compatibility and adaptation.
GOOD PERFORMANCE Rated power is 300 PS with large low-end torque.
SPECIFICATIONS of 6CL Diesel Engine
| Model | Unit | Euro Ⅱ | ||
| 6CL280 | 6CL290 | 6CL330 | ||
| Type | In-line,6-Cylinder,4-Stroke, Water Cooled | |||
| Bore×Stroke | mm×mm | 114×144 | ||
| Total Displacement | L | 9 | ||
| Speed/Power@Rate Conditon | kw/r/min | 206/2200 | 213/2200 | 243/2200 |
| Fuel Consumption Rate@Rated Condition | g/kw.h | ≤226 | ||
| Smoke@Rated Conditon | FSN | ≤1.0 | ||
| Max.Torque/Speed | N.m/r/min | 1170/1300~1500 | 1185/1300~1500 | 1320/1300~1500 |
| Torque Back-up | % | ≥20 | ||
| Fuel Consumption@Max.Torque | g/kw.h | ≤198 | ||
| Smoke@Max.Torque | FSN | ≤0.5 | ||
| Oil/Fuel Consumption Ratio | % | ≤0.40 | ||
| Noise | Db(A) | ≤98 | ||
| Overall Dimension | mm | 1363(Length) ×925(With) ×794(Height) | ||
| Weight | kg | 640 | ||
