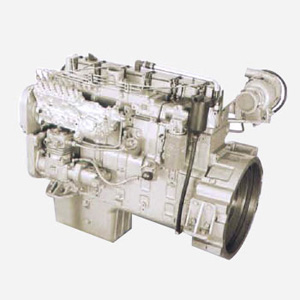

6C Diesel Engine for Trucks (Truck Engine)
6C Diesel Engine for Trucks is specifically designed from the basis of D6114B engine according to truck application characteristics.
PERFORMANCE OPTIMIZATION
Large low-end torque and wide range of maximum torque from 1000rpm to 1800rpm
LOW FUEL CONSUMPTION
Performance optimization makes truck operates with low fuel consumption within whole speed range.
EASY MAINTENANCE
Integrating design, compact, easy maintenance.
LOW EMISSION
The Euro Ⅱ version engine has passed national certification of EuroⅡ. The Euro Ⅲ version started volume production in 2005 .
SPECIFICATIONS of 6C Diesel Engine

Model	Unit	Euro Ⅱ
		6C230	6C240	6C260	6C280
Type		TCI
Bore×Stroke	mm×mm	114×135
Total Displacement	L	8.3
Speed/Power@Rate Conditon	kw/r/min	170/2200	177/2200	192/2200	206/2200
Fuel Consumption Rate@Rated Condition	g/kw.h	≤225
Smoke@Rated Conditon	FSN	≤1.0
Max.Torque/Speed	N.m/r/min	830/1200 ～1600	922/1200 ～1600	1000/1200 ～1600	1112/1200 ～1600
Torque Back-up	%	25	25	20	25
Fuel Consumption@Max.Torque	g/kw.h	≤199		≤198
Smoke@Max.Torque	FSN	≤0.5
Oil/Fuel Consumption Ratio	%	≤0.3
Noise	Db(A)	≤98
Overall Dimension	mm	1363(Length) ×925(With) ×794(Height)
Weight	kg	640
