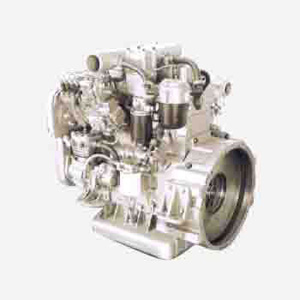

4C Diesel Engine for Trucks (Truck Engine)
4C Diesel Engine for Trucks is a new product developed for trucks on the basis of D6114B engine with experience gained from application in the market development. The engine has advantages of compact, good reliability and low fuel consumption.
WIDE POWER RANGE
100 ~ 147kw, the high power end, is ever produced so far by a domestic 4-cylinder engine.
LARGE TORQUE
Maximum torque is 720 N.m.
GOOD RELIABILITY
Adoption of forged steel crankshaft and optimization of component structures the engine lifetime.
EASY MAINTENANCE
Customer-orientated design, compact and easier for packaging.
LOW NOISE
A removable balancing device balancing 2nd order reciprocal inertia farce is incorporated to improve vibrating transmission characteristics, which effectively reduces vibration and noise of the engine.
4C DIESEL ENGINE SPECIFICATIONS

Model	Unit	Euro Ⅱ
		4C180-2	4C180.1-2	4C200	4C210
Type		4-Cylinder,Water Cooled ,DI
Bore×Stroke	mm×mm	114×130
Total Displacement	L	5.3
Speed/Power@Rate Conditon	kw/r/min	132/2300	132/2300	147/2300	155/2300
Fuel Consumption Rate@Rated Condition	g/kw.h	≤228	≤225
Smoke@Rated Conditon	FSN	≤1.0
Max.Torque/Speed	N.m/r/min	5820/1300~ 1600	660/1300~ 1500	720/1300~ 1500	770/1300~ 1500
Torque Back-up	%	20
Fuel Consumption@Max.Torque	g/kw.h	≤210	≤205
Smoke@Max.Torque	FSN	≤0.5
Oil/Fuel Consumption Ratio	%	≤0.3
Noise	Db(A)	≤98
Overall Dimension	mm	925(length)×900(width)×794(height)
Weight	kg	540
