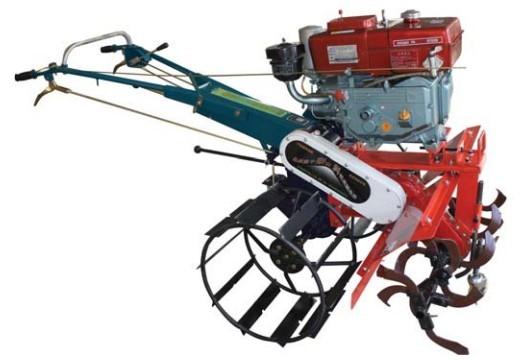

10Hp Diesel Power Tiller

Brand Name TICO POWER  or OEM

1) Place of Origin Fujian, China (Mainland)

2) Price: FOB830-993USD/Set

3) Port: Fuzhou

4) Delivery Time: 20 Days

5) Payment Terms: L/C,T/T,by negotiation

6) Supply Ability: 500 Set/Sets per Month

7) Minimum Order Quantity: 1 Set/SetsTrial Order

8) Color Customer colors available
9) Contract Manufacturing: OEM Service Offered

10) Certification CE, EPA, ISO

===================================

Features

1) 24Months Quality Warrarry
2) Low fuel consumption
3) High quality promise

4) Color Customer colors available
===================================

Specification

Model  1WGQ5

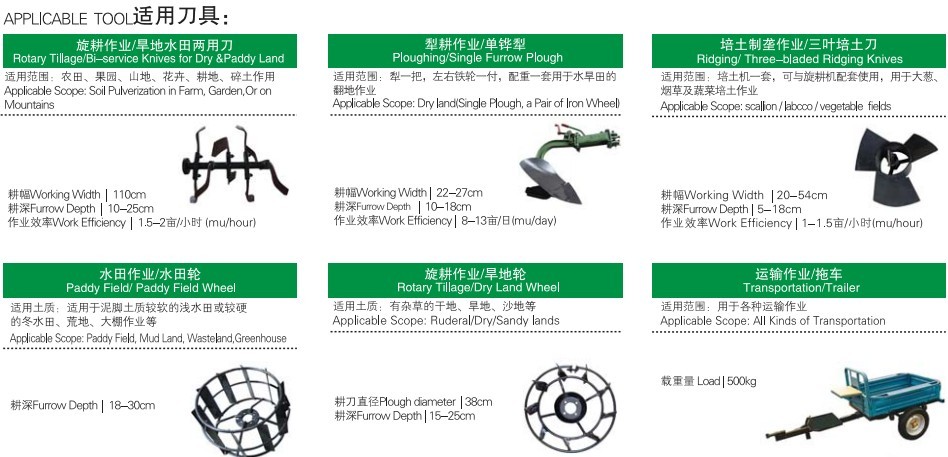

Rotary Cultivator Set

Type: Front Plew, Rear Drive

Working Width: 1000mm

Working Depth: 100-250mm

Working Speed: 4-5.5km/h

Working Efficency: 1.5-2.5mu/h

Fuel Consumption: <1.3L/mu

Maximum Turning Radius: 2.5m

Dimension Unfold: 2100x980x1050mm

Packing Dimension: 2210x810x1150mm

Dry Weight: 115kg

Gross Weight: 120kg


Engine
Model  TD188FA(E)

Engine Type: Single cylinder, diesel engine, air cooled, 4 strok

Engine Speed  3000r/min

Max AC Output: 10Hp

Starting System: Recoil / Electric Start
