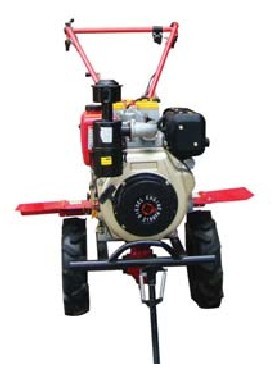

10Hp Diesel Power Tiller

Brand Name TICO POWER  or OEM

1) Place of Origin Fujian, China (Mainland)

2) Price: FOB485-580USD/Set

3) Port: Fuzhou

4) Delivery Time: 20 Days

5) Payment Terms: L/C,T/T,by negotiation

6) Supply Ability: 500 Set/Sets per Month

7) Minimum Order Quantity: 1 Set/SetsTrial Order

8) Color Customer colors available
9) Contract Manufacturing: OEM Service Offered

10) Certification CE, EPA, ISO

===================================

Features

1) 24Months Quality Warrarry
2) Low fuel consumption
3) High quality promise

4) Color Customer colors available
===================================

Specification

Model  1WG6

Rotary Cultivator Set

Type: Direct-coupled

Working Width: 1350mm

Working Depth: 150-200mm

Working Speed: 0.5-1.3km/h

Working Efficency: 1.0-2.0mu/h

Fuel Consumption: <1.1L/mu

Maximum Turning Radius: 2m

Dimension Unfold: 1700x1140x1200mm

Packing Dimension: 980x570x760mm

Dry Weight: 130kg

Gross Weight: 135kg


Engine
Model  TD186FA(E)

Engine Type: Single cylinder diesel engine, vertical air-cooled, 4 strok

Engine Speed  3600r/min

Max AC Output: 10Hp

Starting System : Recoil / Electric Start
