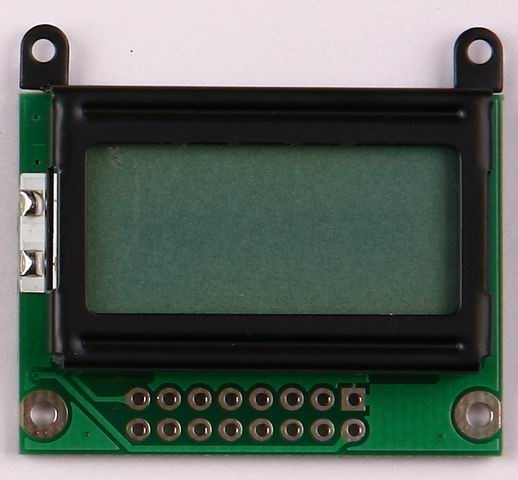

Item NO:XCC0802B
LCM Mode: COB LCD Module
Type:Character type (8 CHARACTERS X 2 LINES)
SPECIFICATION
Character Number |
8W x 2H |
--- |
Character size |
2.95X4.75 |
mm |
Overall Size |
40.0X35.4 |
mm |
Character pitch |
3.35X5.15 |
mm |
Viewing Area |
30.4X13.9 |
mm |
Dot size |
0.55X0.55 |
mm |
Hole Hole |
36.00X30.9 |
mm |
Dot Pitch |
0.60X0.70 |
mm |
FEATURE
1. |
5x8 Dots with cursor |
2. |
Built-in controller (SPLC780D or Equivalent) |
3. |
+5.0V power supply (Also available for +3.0V) |
4. |
1/16duty cycle |
5. |
BKL to be driven by PIN15,PIN16, |
6. |
N.V. optional |
Display type: COB/COG Type, TN/STN/HTN/FSTN/CSTN/VA
Operating temperature: -20 to + 70 degree Celsius
Storage temperature: -30 to + 80 degree Celsius
Backlight: LED(white/green/yellow/amber/blue)
