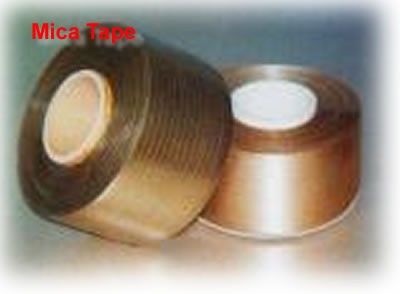

Mica tape
1.Two side: phlogopite mica paper and
fibreglass.
2.Spool way can be 4000M one roll.
3.We have many types
quality.
Mica Tapes are widely used to withstand/ resist fire cable. which adopt high-quality Phlogopite mica papers, fiber-glass clothes or PE films as their reinforcing materials, and also with organic silicon resin as its adhesive, then are baked with high temperature,and pression.
Our mica tape have been through authentication by BS, IEC ,ROHS REACH etc.which can withstand temperature up to 1000 °C for 3 hrs.
Product certification:
From materials to distinguish, We have total five tpyes Mica Tape as follow.
1. HET-J-GS (Phlogopite mica tape + Single side glass fiber)
This is the most common type, The related parameters as the following illustration:
Item
|
Unit
|
TYPE:HET-J-GS |
||||
0.08mm |
0.11mm |
0.12mm |
0.13mm |
0.15mm |
||
Appearance |
- |
No alien material,No split,Scar&hole,No broken&folded,Nopatched place |
||||
Width |
mm |
4.5---880 |
||||
Length |
m |
500,1000,2000 |
||||
Thickness |
mm |
0.08 ± 0.015 |
0.11 ± 0.015 |
0.12 ± 0.015 |
0.13 ± 0.015 |
0.15 ± 0.015 |
Weight of Tape |
g/m² |
100±10 |
145 ± 10 |
170 ± 15 |
185 ± 15 |
220 ± 20 |
Weight of Paper |
g/m² |
65±4 |
100±5 |
120±5 |
134±5 |
168 ± 5 |
Weight of Class Cloth |
g/m² |
21±2 |
28±2 |
28±2 |
28±2 |
28±2 |
Breakdown Voltage |
KV |
>1.2 |
>1.5 |
>1.6 |
>1.7 |
>2.0 |
Tensile Strength |
N/15mm |
≥130 |
≥180 |
≥200 |
≥200 |
≥200 |
Binder Content |
% |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
Mica Content |
% |
>60 |
>65 |
>65 |
>70 |
>75 |
Fire Grades |
°C |
950°C--1000°C, IEC331 |
2. HET-J-FS (Phlogopite mica tape + single side PP/PE film)
Item | Unit | Type:HET-J-FS | |
0.1mm | 0.135mm | ||
Appearance | - | No alien,no split,sacr&hole,no broden folded | |
Width | mm | 6-------880 | |
Length | M | 500,1000,2000 | |
Thickness | mm | 0.10±0.015 | 0.135±0.015 |
Weight of Tape | g/m² | 140±10 | 205±15 |
Weight of Paper | g/m² | 100±5 | 168±5 |
Film Weight | g/m² | 24±2 | 24±2 |
Breakdown Voltage | KV | >5.0 | >5.0 |
Tensile Strength | N/15mm | ≥130 | ≥130 |
Binder Content | % | 8±3 | 8±3 |
Mica Content | % | >65 | >75 |
Fire grade | °C | 900°C---1000°C,IEC331 |
3. HET-J-GD (Phlogopite mica tape + double side glass fiber)
Item | Unit | Type:HET-J-GD | |
Appearance | - | No alicn,no split,sacr&hole,no broden folded | |
Thickness | mm | 0.14 | |
Width | mm | 6--1000 | |
Length | M | 200,300,500,1000 | |
Weight of Tape | g/m² | 200±20 | |
Breakdown Voltage | KV | >1.5 | |
Tensile Strength | N/15mm | ≥200 | |
Binder Content | % | 10±3 | |
Mica Content | % | >60 | |
Fire grade | °C | 750°C---800°C,IEC331 |
4. HET-J-GFD (Phlopite mica tape + glass fiber+ PPE film)
Item | Unit | Type:HET-J-GFD | |
Appearance | - | No alicn,no split,sacr&hole,no broden folded | |
Thickness | mm | 0.14 | |
Width | mm | 6--1000 | |
Length | M | 200,300,500,1000 | |
Weight of Tape | g/m² | 200±20 | |
Breakdown Voltage | KV | >1.5 | |
Tensile Strength | N/15mm | ≥200 | |
Binder Content | % | 10±3 | |
Mica Content | % | >60 | |
Fire grade | °C | 750°C---800°C,IEC331 |
5. HET-J-R Phlogopite mica rolls ( Several Phlogopite mica + Several glass fiber)
Type: (HET-J-R) |
Item | Unit | |
Thickness | mm | 0.2--0.8 |
Consistency | g/m3 | 1.8±0.2 |
Length |
m/roll | 25,50,100 |
Width | mm | 1000 |
Mica Content | % | >80 |
Breakdown Voltage | KV | >15 |
Tensile Strength | N/15mm | ≥100 |
Binder Content | % | 10---15 |
Fire Grade | °C | >800 |

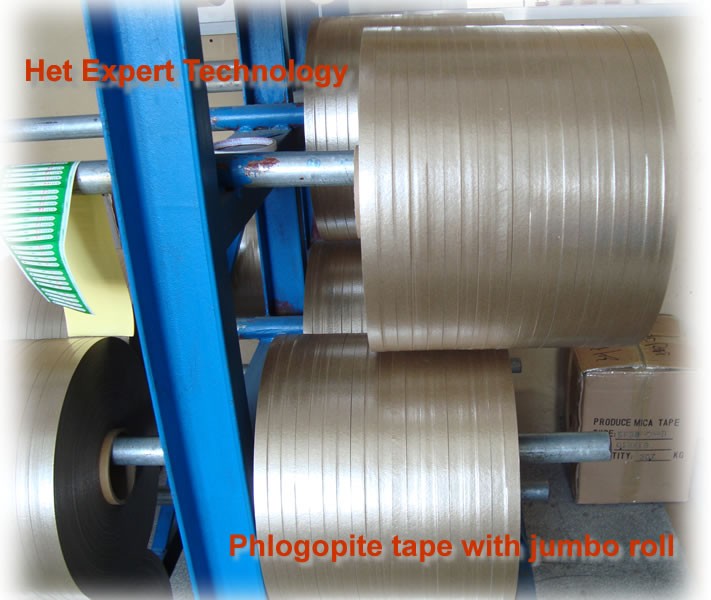

**From all above of five tpyes Mica Tape, there are have two winding ways.
1.Common winding way. (A roll only can reach 2000m)
2. Spool way. (A roll can reach 2000m-10000m)
Characteristic:
•Excellent heat insulation. Phlogopite-mica tape will not be broken down with a temperature of 750°-950° and a volatge of 600- 1000V for 90 minutes.
•Hig eco-friendliness. Our products do not comtain any asbestos and won't product any poisonous gas with high temperatrue.
•High resistance to acid and alkali, corona and radiation. Our products feel dry and non-adhesive and enjoy good bendablity and softness and also high tensile strength when winding and wrapping wires and cables in high speed.
Specifications:
Thickness: 0.08mm-0.16mm
Width: 6mm-1000mm
Length: 300m 500m 1000m 2000m
Roll diameter: 52mm 54mm 76mm 120mm
Storage:
Minimum 1year at room temperature
Applications:
Mica tape is most used for Communication Cable and Signal Cable.
Oil-platforms,multi-storey buildings,power station,industry
plants,subways,computer centers ,aerospace units,telecommunication
centers ,ships,military facilities
