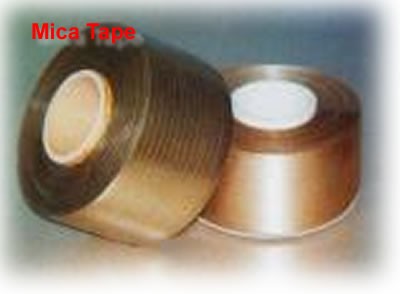

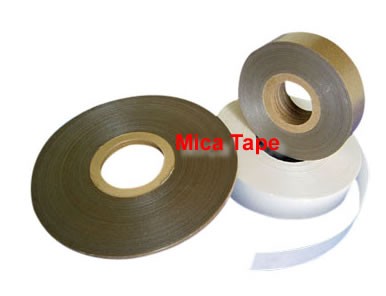

Mica tape
Mica Tapes are widely used to withstand/ resist fire cable. which
adopt high-quality Phlogopite mica papers, fiber-glass clothes or PE films as
their reinforcing materials, and also with organic silicon resin as its
adhesive, then are baked with high temperature,and pression.
Our mica tape have been through authentication by BS, IEC ,ROHS REACH
etc.which can withstand temperature up to 1000 °C for 3 hrs.
Product
certification:
From materials to distinguish, We have total five
tpyes Mica Tape as follow.
1. HET-J-GS (Phlogopite mica tape + Single side glass
fiber)
This is the most
common type, The related parameters as the following illustration:
Item
Unit
TYPE:HET-J-GS
0.08mm
0.11mm
0.12mm
0.13mm
0.15mm
Appearance
-
No alien material,No split,Scar&hole,No
broken&folded,Nopatched place
Width
mm
4.5---880
Length
m
500,1000,2000
Thickness
mm
0.08 ± 0.015
0.11 ± 0.015
0.12 ± 0.015
0.13 ± 0.015
0.15 ± 0.015
Weight of Tape
g/m²
100±10
145 ± 10
170 ± 15
185 ± 15
220 ± 20
Weight of Paper
g/m²
65±4
100±5
120±5
134±5
168 ± 5
Weight of Class Cloth
g/m²
21±2
28±2
28±2
28±2
28±2
Breakdown Voltage
KV
>1.2
>1.5
>1.6
>1.7
>2.0
Tensile Strength
N/15mm
≥130
≥180
≥200
≥200
≥200
Binder Content
%
13±3
13±3
13±3
13±3
13±3
Mica Content
%
>60
>65
>65
>70
>75
Fire Grades
°C
950°C--1000°C, IEC331
2. HET-J-FS (Phlogopite mica tape + single side PP/PE
film)
3. HET-J-GD (Phlogopite mica tape + double side glass
fiber)
4. HET-J-GFD (Phlopite mica
tape + glass fiber+ PPE film)
5. HET-J-R Phlogopite mica
rolls ( Several Phlogopite mica + Several glass fiber)
Length
**From all above of five tpyes Mica Tape, there are have two winding
ways.
1.Common winding way. (A roll only can reach
2000m)
2. Spool way. (A roll can
reach 2000m-10000m)
Characteristic:
•Excellent heat insulation. Phlogopite-mica tape will not be broken down with
a temperature of 750°-950° and a volatge of 600- 1000V for 90 minutes.
•Hig eco-friendliness. Our products do not comtain any asbestos and won't
product any poisonous gas with high temperatrue.
•High resistance to acid and alkali, corona and radiation. Our products feel
dry and non-adhesive and enjoy good bendablity and softness and also high
tensile strength when winding and wrapping wires and cables in high speed.
Specifications:
Thickness: 0.08mm-0.16mm
Width: 6mm-1000mm
Length: 300m 500m 1000m 2000m
Roll diameter: 52mm 54mm 76mm 120mm
Storage:
Minimum 1year at room temperature
Applications:
Mica tape is most used for Communication Cable and Signal Cable.
Oil-platforms,multi-storey buildings,power station,industry
plants,subways,computer centers ,aerospace units,telecommunication
centers ,ships,military facilities
Specifications
1.Two side: phlogopite mica paper and
fibreglass.
2.Spool way can be 4000M one roll.
3.We have many types
quality.
Item
Unit
Type:HET-J-FS
0.1mm
0.135mm
Appearance
-
No alien,no split,sacr&hole,no broden folded
Width
mm
6-------880
Length
M
500,1000,2000
Thickness
mm
0.10±0.015
0.135±0.015
Weight of Tape
g/m²
140±10
205±15
Weight of Paper
g/m²
100±5
168±5
Film Weight
g/m²
24±2
24±2
Breakdown Voltage
KV
>5.0
>5.0
Tensile Strength
N/15mm
≥130
≥130
Binder Content
%
8±3
8±3
Mica Content
%
>65
>75
Fire grade
°C
900°C---1000°C,IEC331
Item
Unit
Type:HET-J-GD
Appearance
-
No alicn,no split,sacr&hole,no broden folded
Thickness
mm
0.14
Width
mm
6--1000
Length
M
200,300,500,1000
Weight of Tape
g/m²
200±20
Breakdown Voltage
KV
>1.5
Tensile Strength
N/15mm
≥200
Binder Content
%
10±3
Mica Content
%
>60
Fire grade
°C
750°C---800°C,IEC331
Item
Unit
Type:HET-J-GFD
Appearance
-
No alicn,no split,sacr&hole,no broden folded
Thickness
mm
0.14
Width
mm
6--1000
Length
M
200,300,500,1000
Weight of Tape
g/m²
200±20
Breakdown Voltage
KV
>1.5
Tensile Strength
N/15mm
≥200
Binder Content
%
10±3
Mica Content
%
>60
Fire grade
°C
750°C---800°C,IEC331
Type:
(HET-J-R)
Item
Unit
Thickness
mm
0.2--0.8
Consistency
g/m3
1.8±0.2
m/roll
25,50,100
Width
mm
1000
Mica Content
%
>80
Breakdown Voltage
KV
>15
Tensile Strength
N/15mm
≥100
Binder Content
%
10---15
Fire Grade
°C
>800
