Crusher Function:
Crushing is the first step of making Pellet and Charcoal Briquette.

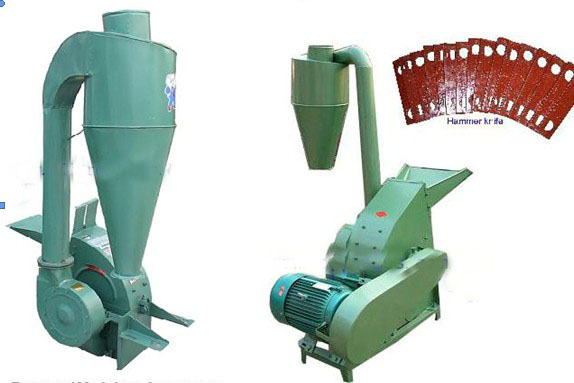

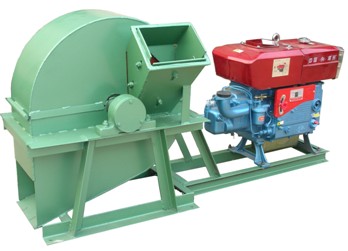

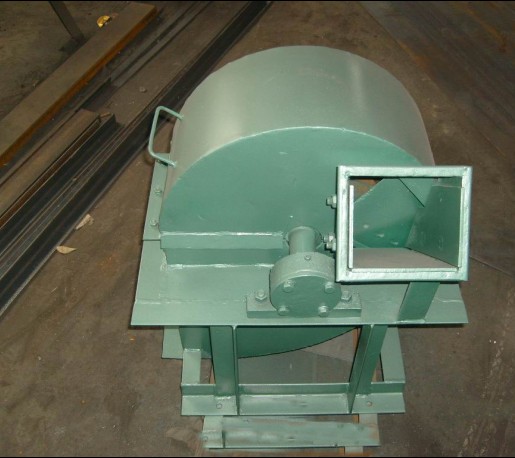

One is Wood Crusher, which could crush the big diameter Tree Branch into Sawdust, the other is Straw Crusher, also named as Hammer Mill, which is suitable for grinding the Grains, such as Corn, Wheat Straw etc.
Wood Crusher Parameter:
Item |
MX-40 |
MX-60 |
MX-80 |
Capacity(kg/h) |
600-700 |
800-900 |
1000-2000 |
Size of Feeding Hopper |
200*200 |
300*300 |
300*300 |
Motor(kw) |
15-22 |
22-30 |
30-45 |
Overall Dimension (cm) |
75*55*115 |
200*80*80 |
210*100*100 |
Hammer Mill/ Grinder Parameter:
No. |
Type |
Capacity (kg/h) |
Power (kw) |
Weight for Mill (kg) |
1 |
CF-10 |
100-200 |
1.1 |
50 |
2 |
CF-20 |
200-300 |
1.5 |
60 |
3 |
CF-30 |
300-400 |
3 |
80 |
4 |
CF-40 |
400-500 |
5.5 |
160 |
5 |
CF-50 |
500-800 |
7.5 |
180 |
6 |
CF-60 |
800-1200 |
11 |
200 |
