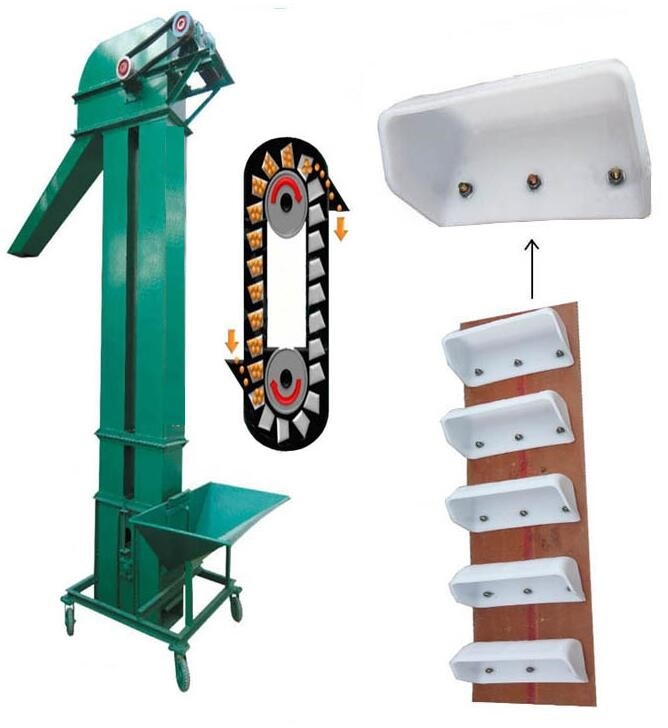

High efficiency DT series Bucket Elevator is used to elevate(lift) varieties of Powder, Granule, Grinding Bulk Materials, for example Grain, Coal, Cement etc. Suitable Hopper as per the materials properties is optional. Bucket Elevators transfer bulk materials vertically from one location to another.
Structure
Material Conveying Mechanism (Buckets and Conveying Rubber Belt),
Upper section with transmission drum,
Lower section with stretching drum,
Housing at the medium section,
Drive mechanism,
Non-return brake apparatus.
Technical Parameter
Model |
Speed(m/s) |
Capacity(T/H) |
DT09/11 |
0.8-2 |
1-3 |
DT11/13 |
0.8-2 |
1-5 |
DT14/18 |
0.8-2 |
5-10 |
DT14/23 |
0.8-2 |
10-25 |
DT14/28 |
0.8-2 |
20-30 |
DT18/32 |
0.8-2 |
30-50 |
DT21/33 |
0.8-2 |
40-60 |
