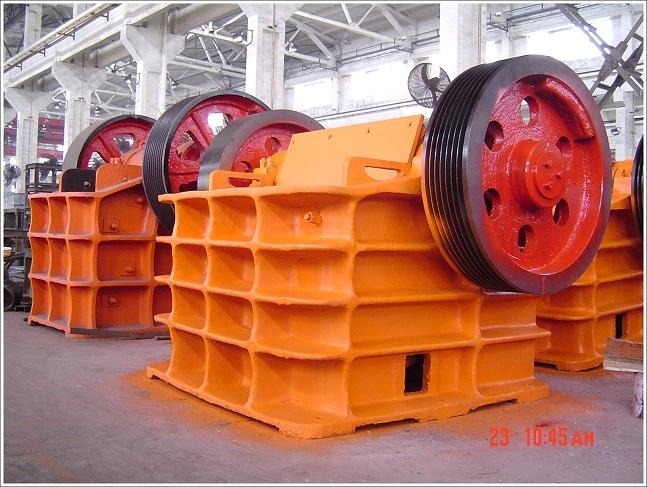

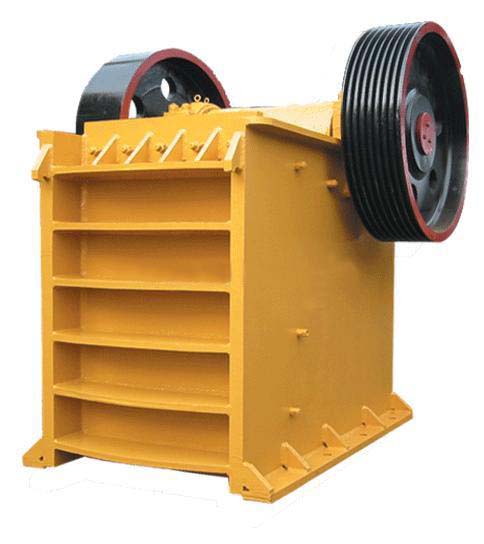

What's Jaw Crusher?
There are two models of Jaw Crusher:
PE Series Jaw Crusher is used in Primary Crushing, and PEX series is used in Secondary Crushing and Fine Crushing.

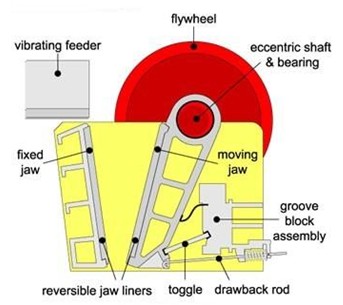

Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Jaw Crusher Specifications:
Model |
Size of Feed |
Max Feed |
Discharge Range |
Capacity |
Motor Power |
Opening(mm) |
Size (mm) |
Opening (mm) |
(t/h) |
(kw) |
|
PE~250*400 |
250*400 |
210 |
20~60 |
5~20 |
15 |
PE~400*600 |
400*600 |
340 |
40~100 |
16~60 |
30 |
PE~500*750 |
500*750 |
425 |
50~100 |
40~110 |
55 |
PE~600*900 |
600*900 |
500 |
65~180 |
60~200 |
75 |
PE~750*1060 |
750*1060 |
630 |
80~180 |
115~330 |
110 |
PE~870*1060 |
870*1060 |
750 |
170~270 |
290~336 |
110 |
PE~900*1060 |
900*1060 |
780 |
200~290 |
160~400 |
110 |
PE~900*1200 |
900*1200 |
780 |
95~225 |
220~450 |
110 |
PE~1000*1200 |
1000*1200 |
850 |
195~280 |
315~500 |
110 |
PE~1200*1500 |
1200*1500 |
1020 |
150~300 |
400~800 |
160 |
PEX~150*750 |
150*750 |
120 |
18~48 |
8~25 |
15 |
PEX~250*750 |
250*750 |
210 |
25~60 |
13~35 |
30 |
PEX~250*1000 |
250*1000 |
210 |
25~60 |
16~52 |
37 |
PEX~250*1200 |
250*1200 |
210 |
25~60 |
20~61 |
45 |
PEX~300*1300 |
300*1300 |
250 |
20~90 |
16~105 |
75 |
