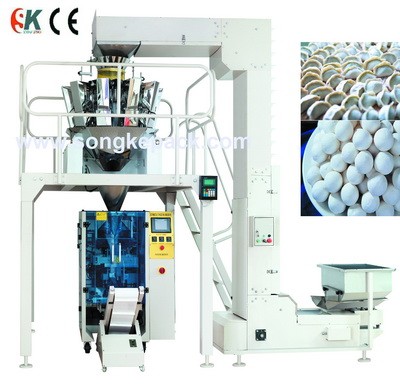

Packaging machine equipment Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy,such as apple flake,banana flake,potato chips,tomato chips,biscuit,nuts,rice,peanuts,seeds,candy,crispy rice,candy,sugar,salt and so on.
Standard Technique Specification:
|
Principal packing machine type |
SK-220 |
|
Metering system |
10 heads electronic scaler |
|
Material conveyor |
Z type bucket material conveyor |
|
Film material |
OPP/CPP,OPP/CE,MST/PE/PET/PE |
|
Standard sealing form |
Back sealing |
|
Standard machine frame material |
Carbon steel |
|
Bag length |
80 |
|
Bag width |
80 |
|
Film roll dia. |
Max |
|
Packing speed |
5-60bag/min |
|
Packing thickness |
0.04 |
|
Power supply specification |
220V,50/60Hz,2.4KAV |
Feature:
1.The imported PLC, servomotor, super large display touch screen are the driving and control center of this machine,easy for operation, intuitionistic and efficient.
2.Photoelectric control system and servomotor film transporting system,automatic and accurate positioning,makes the bags nice and smooth,low noise.
3.The complete automatic alarm protection function, make sure the maximum reduce wastage.
4.The machine adopts intelligent temperature controller, which can guarantee the top sealing looked good and smooth.
5.It can finish from feeding,measuring,date printing,bag making,filling,sealing,cutting,counting in one operation.
6.Different kinds of sealing forms are available according to customers' requirement.
Optional function devices:
1. Nitrogen gas flushing
2. Vacuum packing device
3. Flip device
4. Gusset device
5. Hole punch device
6. Tear notch device
7. PE sealing system
8.16 heads combined electronic scaler
